SKU: NKIB5904-MB

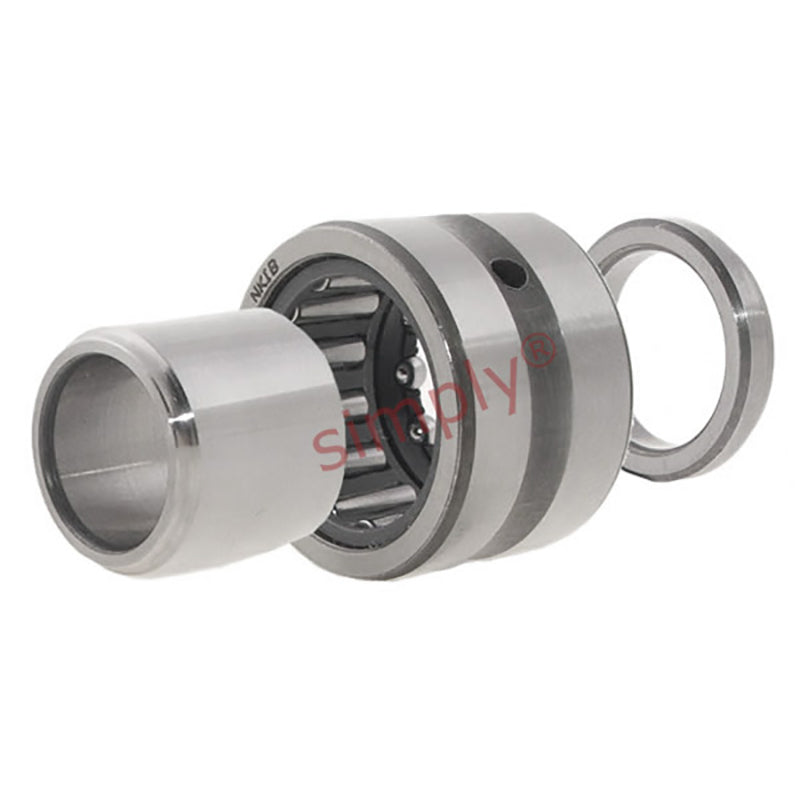

Major Brand NKIB5904 Needle Roller / Angular Contact Ball Bearing Assembly Double Direction Series
Major Brand NKIB5904 Needle Roller / Angular Contact Ball Bearing Assembly Double Direction Series
Regular price
€50,95
ex VAT
Regular price
Sale price
€50,95
ex VAT
In stock
Price Break
10+
€38,05
19+
€35,92
29+
€35,49
39+
€35,06
49+
€34,63
74+
€34,21
99+
€32,07
199+
€31,64
249+
€31,21
499+
€30,79
999+
€29,93
Share this product
Description
Description
INA NKIB Needle Roller / Angular Contact Ball Bearings: This versatile bearing solution combines a radial needle bearing with an angular contact ball bearing. This enables it to handle heavy radial and light axial loads in both directions. This bearing is designed for high-speed operation and features a low cross-sectional height, making it ideal for space-constrained applications. Additionally, it offers a detachable design for ease of maintenance and assembly.
Benefits: High load-carrying capacity, high-speed capability, low cross-section
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 37mm
- Width:
- 25mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 37mm |
| B | 25mm |
| C | 23mm |
| Radial dynamic load | 21600 N |
| Radial static load | 28000 N |
| Axial dynamic load | 3790 N |
| Axial static load | 4210 N |
| Fatigue load limit radial Pu | 3350 N |
| Fatigue load limit axial Pu | 176 N |
| Speed in grease | 9500 rpm |
| Speed in oil | 15000 rpm |
| F | 25mm |
| r1r2 | 0.3mm |
| da min | 22mm |
| Da max | 35mm |
| ra max | 0.3mm |
