SKU: 06B-2-BB-NO12-RENOLD
Renold Blue Box 06B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 3/8 inch Pitch
Renold Blue Box 06B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 3/8 inch Pitch
Regular price
€15,22
ex VAT
Regular price
Sale price
€15,22
ex VAT
In stock
Price Break
10+
€13,55
19+
€12,78
29+
€12,63
39+
€12,48
49+
€12,33
74+
€12,18
99+
€11,42
199+
€11,26
249+
€11,11
499+
€10,96
999+
€10,65
Couldn't load pickup availability
Description
Description

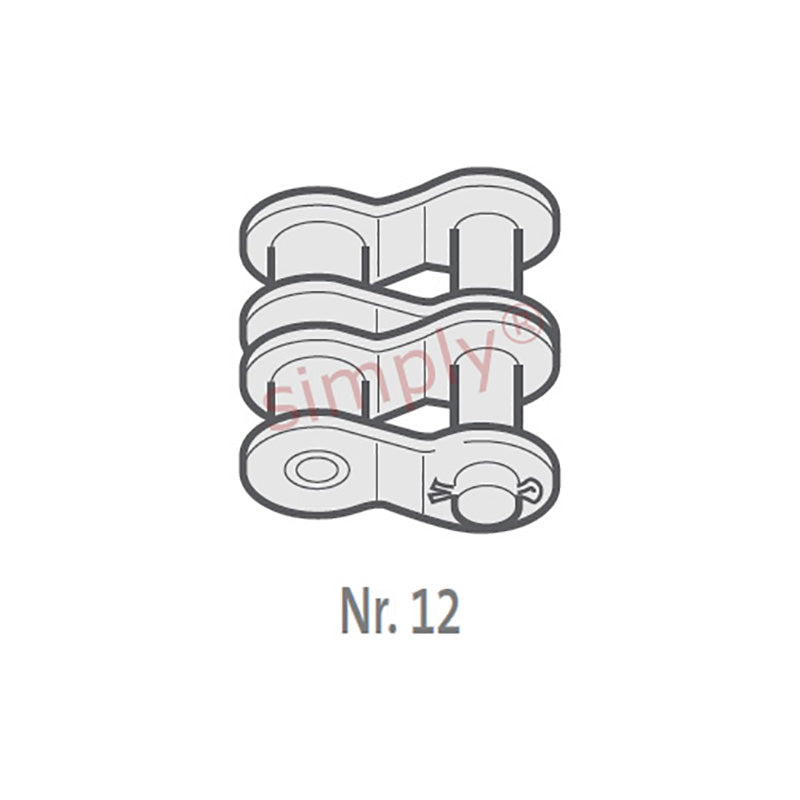

| Renold No. 12 European (BS) Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical
| Pitch (A) | 0.375 inch |
|---|---|
| Pitch (A) | 9.525mm |
| Inside Width min (B) | 5.72mm |
| Roller Diameter max (C) | 6.35mm |
| Plate Height max (D) | 8.2mm |
| Plate Width Inner max (E) | 1.29mm |
| Plate Width Outer max (F) | 1.04mm |
| Pin Diameter max (G) | 3.28mm |
| Pin Length max (H1) | 23mm |
| Connecting Link Extension max (J) | 1.3mm |
| ISO606 Tensile Strength min | 16900 N |
| Weight | 0.002kg/m |
