SKU: 06B-2-NO12-MB
Major Brand 06B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 3/8 inch Pitch
Major Brand 06B-2-NO12 BS Duplex Chain Single Cranked Cottered Link 3/8 inch Pitch
Regular price
€5,95
ex VAT
Regular price
Sale price
€5,95
ex VAT
Equivalent to: 06B-2-OL
In stock
Price Break
2+
€3,87
5+
€3,65
10+
€3,61
29+
€3,56
49+
€3,52
75+
€3,48
100+
€3,26
200+
€3,22
250+
€3,17
500+
€3,13
1000+
€3,04
Description
Description

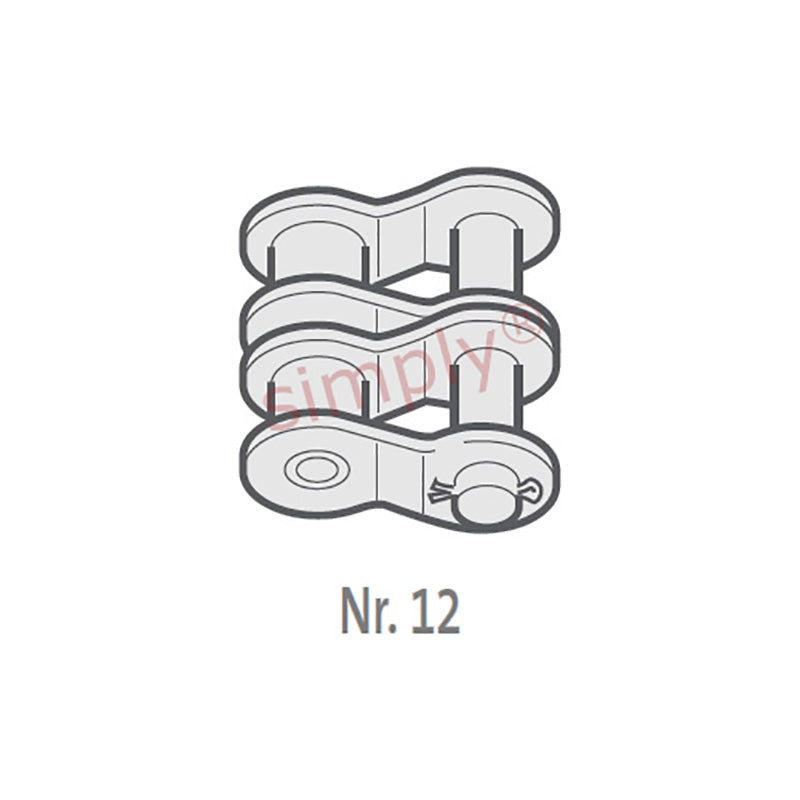

Branded OL / No. 12 European (BS) Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Equivalent: 06B-2-OL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical
| Pitch (A) | 0.375 inch |
|---|---|
| Pitch (A) | 9.525mm |
| Inside Width min (B) | 5.72mm |
| Roller Diameter max (C) | 6.35mm |
| Plate Height max (D) | 8.2mm |
| Plate Width Inner max (E) | 1.25mm |
| Plate Width Outer max (F) | 1mm |
| Pin Diameter max (G) | 3.28mm |
| Pin Length max (H2) | 23.5mm |
| Connecting Link Extension max (J) | 1mm |
| Transverse Pitch nom (K) | 10.24mm |
| ISO606 Tensile Strength min | 16900 N |
| Weight | 0.002kg/m |
