SKU: 06B-3-NO30-MB

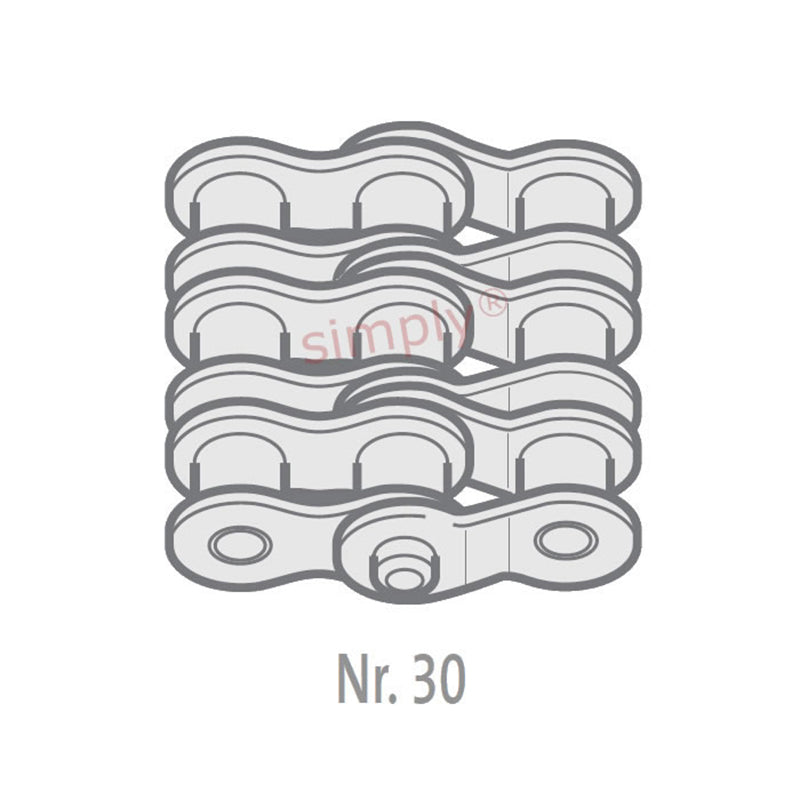

Major Brand 06B-3-NO30 BS Triplex Chain Double Cranked Link 3/8 inch Pitch
Major Brand 06B-3-NO30 BS Triplex Chain Double Cranked Link 3/8 inch Pitch
Regular price
€7,95
ex VAT
Regular price
Sale price
€7,95
ex VAT
Equivalent to: 06B-3-DOL
In stock
Price Break
2+
€6,02
5+
€5,68
10+
€5,61
29+
€5,54
49+
€5,48
75+
€5,41
100+
€5,07
200+
€5,00
250+
€4,94
500+
€4,87
1000+
€4,73
Description
Description
Branded DOL / No. 30 European (BS) Triplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Equivalent: 06B-3-DOL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 9.53mm = 0.375 (3/8) inch
Technical
Technical
| Pitch (A) | 0.375 inch |
|---|---|
| Pitch (A) | 9.525mm |
| Inside Width min (B) | 5.72mm |
| Roller Diameter max (C) | 6.35mm |
| Plate Height max (D) | 8.2mm |
| Plate Width Inner max (E) | 1.25mm |
| Plate Width Outer max (F) | 1mm |
| Pin Diameter max (G) | 3.28mm |
| Pin Length max (H3) | 35.6mm |
| Connecting Link Extension max (J) | 3mm |
| ISO606 Tensile Strength min | 26250 N |
| Weight | 0.003kg/m |
