SKU: 08B-1-SYN-NO30-RENOLD
Renold Synergy 08B-1-NO30 BS Simplex Chain Double Cranked Link 1/2 inch Pitch
Renold Synergy 08B-1-NO30 BS Simplex Chain Double Cranked Link 1/2 inch Pitch
Regular price
€16,95
ex VAT
Regular price
Sale price
€16,95
ex VAT
In stock
Price Break
2+
€12,55
5+
€11,84
10+
€11,70
29+
€11,56
49+
€11,42
75+
€11,28
100+
€10,58
200+
€10,43
250+
€10,29
500+
€10,15
1000+
€9,87
Description
Description

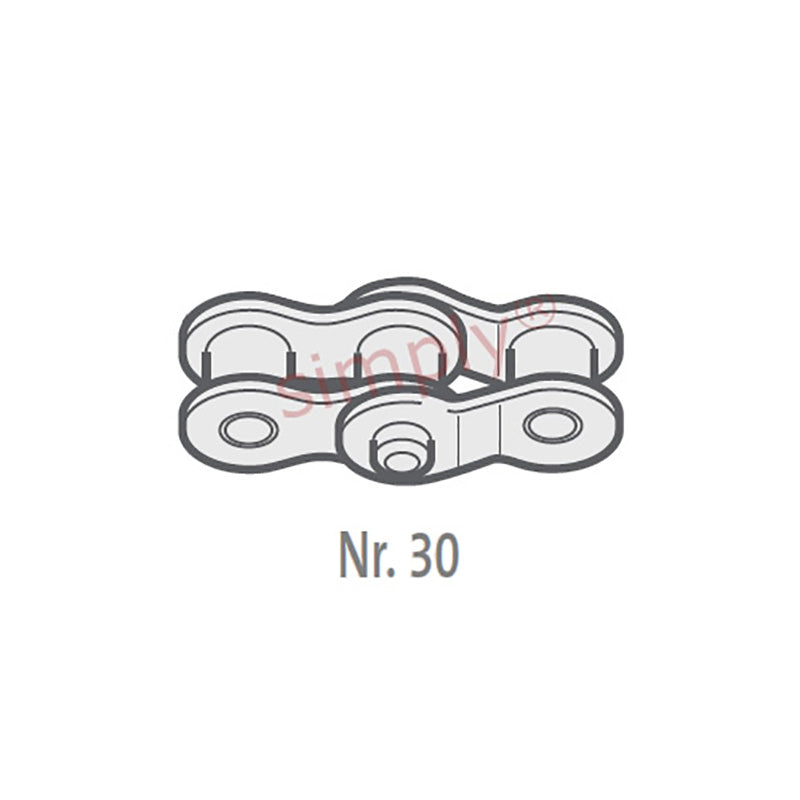

| Renold No. 30 European (BS) Simplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 7.75mm |
| Roller Diameter max (C) | 8.51mm |
| Plate Height max (D) | 11.7mm |
| Plate Width Inner max (E) | 1.55mm |
| Plate Width Outer max (F) | 1.55mm |
| Pin Diameter max (G) | 4.45mm |
| Pin Length max (H1) | 16.5mm |
| Connecting Link Extension max (J) | 2mm |
| ISO606 Tensile Strength min | 17800 N |
| Weight | 0.003kg/m |
