SKU: 08B-3-BB-NO11-RENOLD
Renold Blue Box 08B-3-NO11 BS Triplex Chain Cottered Connecting Link 1/2 inch Pitch
Renold Blue Box 08B-3-NO11 BS Triplex Chain Cottered Connecting Link 1/2 inch Pitch
Regular price
€9,95
ex VAT
Regular price
Sale price
€9,95
ex VAT
In stock
Price Break
2+
€7,51
5+
€7,09
10+
€7,01
29+
€6,92
49+
€6,84
75+
€6,75
100+
€6,33
200+
€6,25
250+
€6,16
500+
€6,08
1000+
€5,91
Description
Description

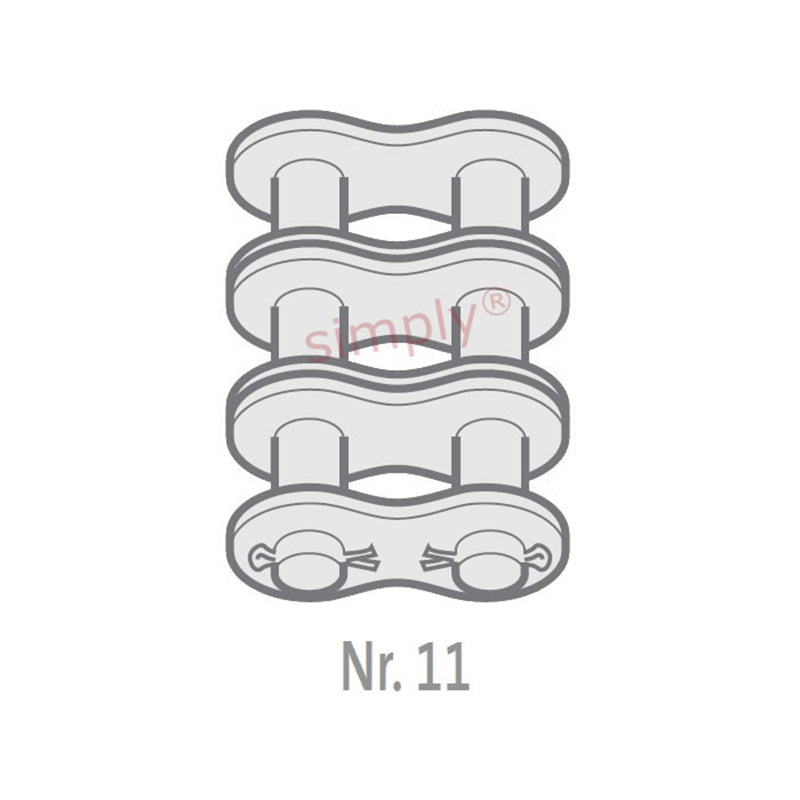

| Renold No. 11 European (BS) Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 7.75mm |
| Roller Diameter max (C) | 8.51mm |
| Plate Height max (D) | 11.7mm |
| Plate Width Inner max (E) | 1.55mm |
| Plate Width Outer max (F) | 1.55mm |
| Pin Diameter max (G) | 4.45mm |
| Pin Length max (H2) | 44.3mm |
| Connecting Link Extension max (J) | 2mm |
| Transverse Pitch nom (K) | 13.92mm |
| ISO606 Tensile Strength min | 44500 N |
| Weight | 0.003kg/m |
