SKU: 100-1-NO11-MB
Branded 100-1-NO11 ANSI / AS Simplex Chain Cottered Connecting Link 1-1/4 inch Pitch
Branded 100-1-NO11 ANSI / AS Simplex Chain Cottered Connecting Link 1-1/4 inch Pitch
Regular price
€8,12
ex VAT
Regular price
Sale price
€8,12
ex VAT
Equivalent to: 100-1-CL-COT 100-1-CL
In stock
Price Break
10+
€7,23
19+
€6,82
29+
€6,74
39+
€6,66
49+
€6,58
74+
€6,50
99+
€6,09
199+
€6,01
249+
€5,93
499+
€5,85
999+
€5,68
Couldn't load pickup availability
Share this product
Description
Description

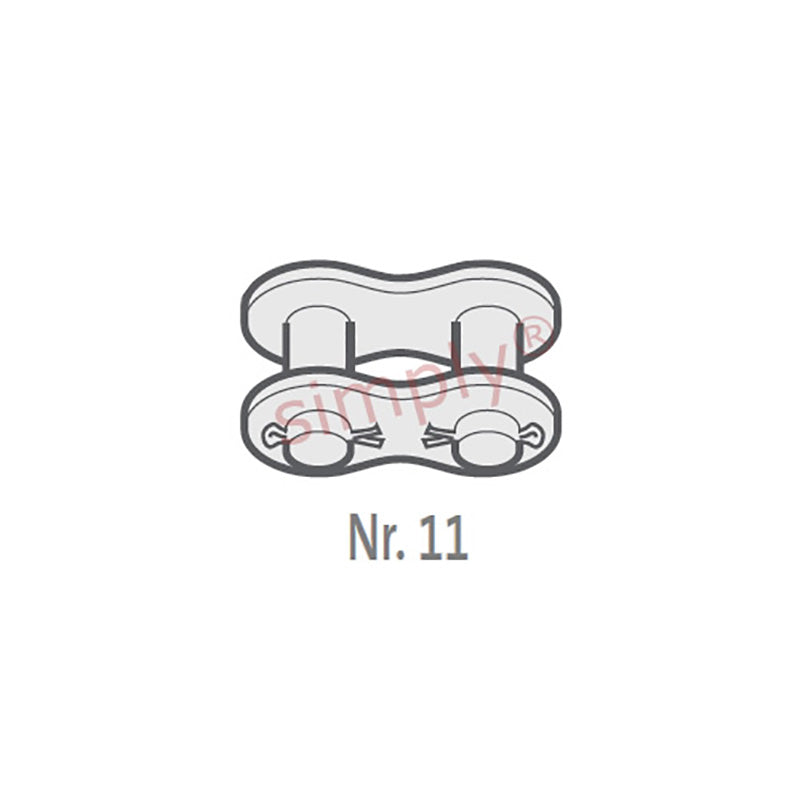

Branded COT / No. 11 ANSI Simplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Equivalent: 100-1-CL-COT 100-1-CL
- Brand / Quality:
- Major Brand - High Quality
- Chain Pitch:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Pitch (A) | 1.25 inch |
|---|---|
| Pitch (A) | 31.75mm |
| Inside Width min (B) | 18.9mm |
| Roller Diameter max (C) | 19.05mm |
| Plate Height max (D) | 30.1mm |
| Plate Width Inner max (E) | 3.9mm |
| Plate Width Outer max (F) | 3.9mm |
| Pin Diameter max (G) | 9.53mm |
| Pin Length max (H1) | 40mm |
| Connecting Link Extension max (J) | 3.2mm |
| ISO606 Tensile Strength min | 87000 N |
| Weight | 0.04kg/m |
