SKU: 100-2-NO11-DUN
Branded 100-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-1/4 inch Pitch
Branded 100-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-1/4 inch Pitch
Regular price
€10,56
ex VAT
Regular price
Sale price
€10,56
ex VAT
Equivalent to: 100-2-CL-COT 100-2-CL
In stock
Price Break
10+
€9,40
19+
€8,87
29+
€8,76
39+
€8,66
49+
€8,55
74+
€8,45
99+
€7,92
199+
€7,81
249+
€7,71
499+
€7,60
999+
€7,39
Couldn't load pickup availability
Description
Description

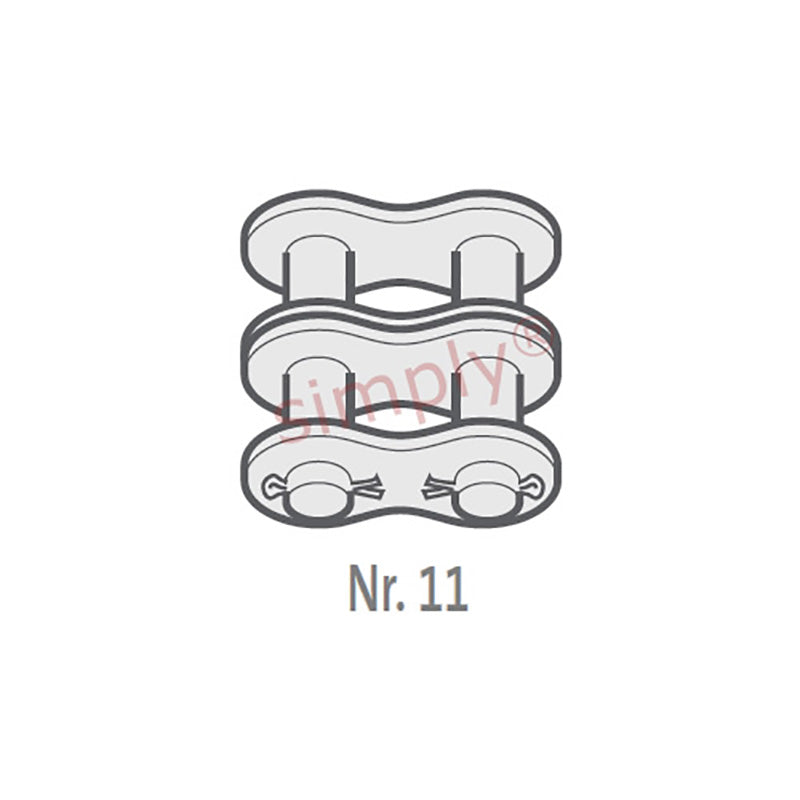

Branded COT / No. 11 ANSI Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Equivalent: 100-2-CL-COT 100-2-CL
- Brand / Quality:
- Branded - Good Quality
- Pitch:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Pitch (A) | 1.25 inch |
|---|---|
| Pitch (A) | 31.75mm |
| Inside Width min (B) | 18.9mm |
| Roller Diameter max (C) | 19.05mm |
| Plate Height max (D) | 30.1mm |
| Plate Width Inner max (E) | 3.9mm |
| Plate Width Outer max (F) | 3.9mm |
| Pin Diameter max (G) | 9.53mm |
| Pin Length max (H2) | 76.2mm |
| Connecting Link Extension max (J) | 4.3mm |
| Transverse Pitch nom (K) | 35.76mm |
| ISO606 Tensile Strength min | 174000 N |
| Weight | 0.08kg/m |
