SKU: 100-3-NO12-MB

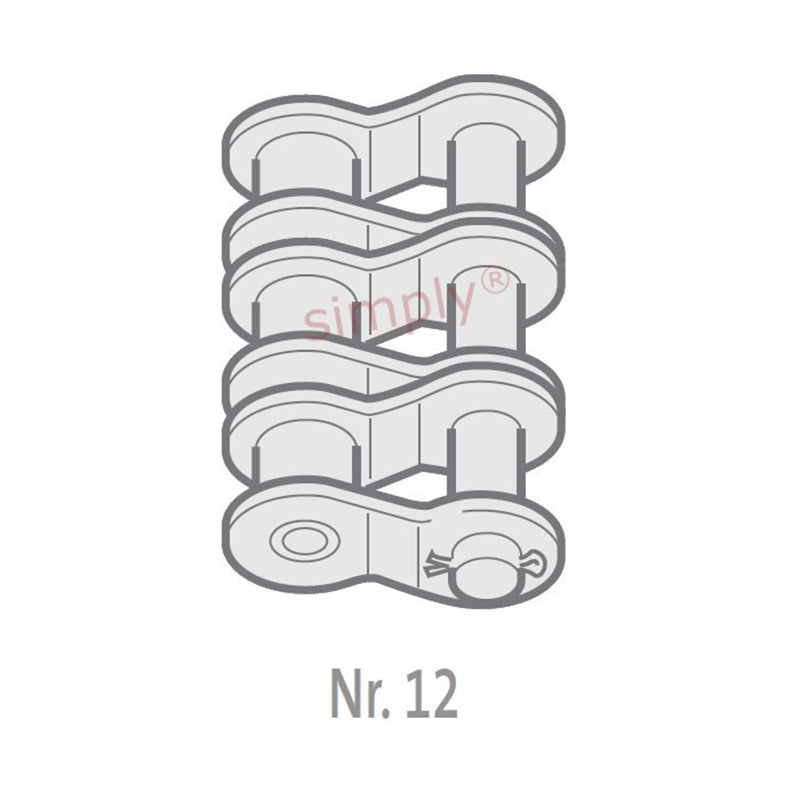

Branded 100-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1-1/4 inch Pitch
Branded 100-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1-1/4 inch Pitch
Regular price
€31,95
ex VAT
Regular price
Sale price
€31,95
ex VAT
Equivalent to: 100-3-OL
In stock
Price Break
2+
€24,18
5+
€22,83
10+
€22,55
29+
€22,28
49+
€22,01
75+
€21,74
100+
€20,38
200+
€20,11
250+
€19,84
500+
€19,57
1000+
€19,02
Description
Description
Branded OL / No. 12 ANSI Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Equivalent: 100-3-OL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Pitch (A) | 1.25 inch |
|---|---|
| Pitch (A) | 31.75mm |
| Inside Width min (B) | 18.9mm |
| Roller Diameter max (C) | 19.05mm |
| Plate Height max (D) | 30.1mm |
| Plate Width Inner max (E) | 3.9mm |
| Plate Width Outer max (F) | 3.9mm |
| Pin Diameter max (G) | 9.53mm |
| Pin Length max (H1) | 107.2mm |
| Connecting Link Extension max (J) | 9.60000000000001mm |
| ISO606 Tensile Strength min | 261000 N |
| Weight | 35.76kg/m |
