SKU: 10B-2-BB-NO11-RENOLD
Renold Blue Box 10B-2-NO11 BS Duplex Chain Cottered Connecting Link 5/8 inch Pitch
Renold Blue Box 10B-2-NO11 BS Duplex Chain Cottered Connecting Link 5/8 inch Pitch
Regular price
€10,95
ex VAT
Regular price
Sale price
€10,95
ex VAT
In stock
Price Break
2+
€7,87
5+
€7,43
10+
€7,34
29+
€7,25
49+
€7,16
75+
€7,08
100+
€6,63
200+
€6,54
250+
€6,46
500+
€6,37
1000+
€6,19
Description
Description

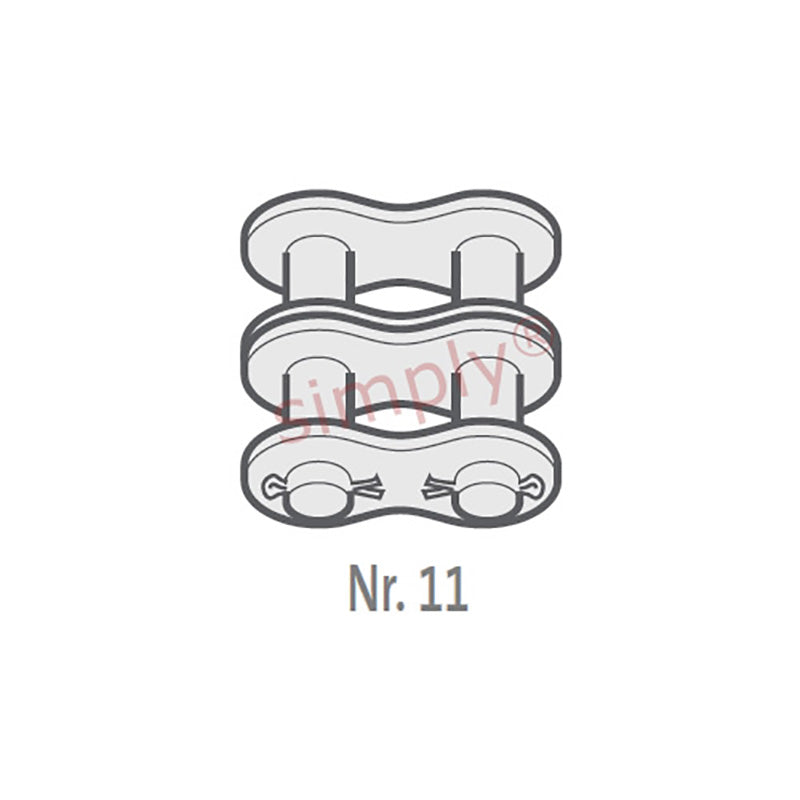

| Renold No. 11 European (BS) Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.65mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.6mm |
| Plate Width Inner max (E) | 1.55mm |
| Plate Width Outer max (F) | 1.55mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H1) | 35.4mm |
| Connecting Link Extension max (J) | 2.5mm |
| ISO606 Tensile Strength min | 44500 N |
| Weight | 0.009kg/m |
