SKU: 10B-3-SD-NO12-RENOLD
Renold SD 10B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 5/8 inch Pitch
Renold SD 10B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 5/8 inch Pitch
Regular price
€8,95
ex VAT
Regular price
Sale price
€8,95
ex VAT
In stock
Price Break
2+
€6,57
5+
€6,20
10+
€6,13
29+
€6,05
49+
€5,98
75+
€5,90
100+
€5,54
200+
€5,46
250+
€5,39
500+
€5,31
1000+
€5,17
Description
Description

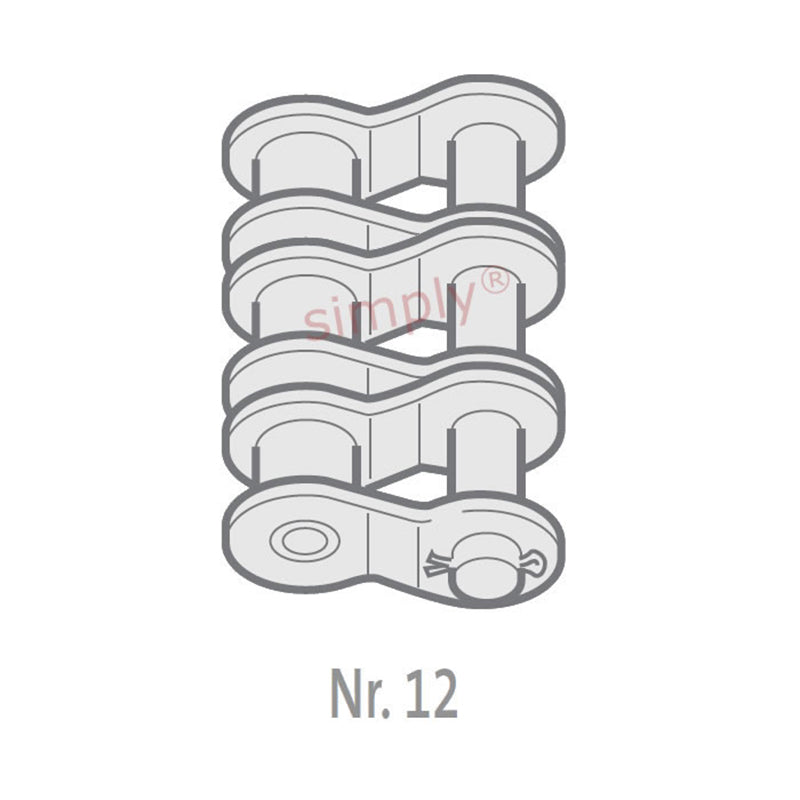

| Renold No. 12 European (BS) Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.65mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.7mm |
| Plate Width Inner max (E) | 1.65mm |
| Plate Width Outer max (F) | 1.65mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H1) | 53.2mm |
| Connecting Link Extension max (J) | 4.2mm |
| ISO606 Tensile Strength min | 66650 N |
| Weight | 0.018kg/m |
