SKU: 1125-25CG-RHP

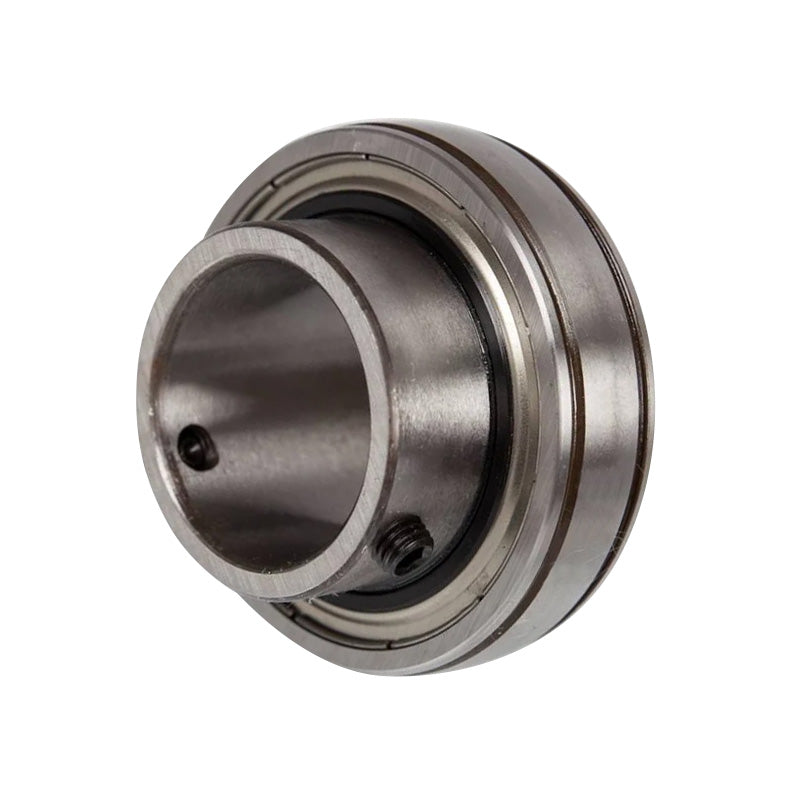

RHP 1125-25CG Full Width Snap Ring Grub Screw Bearing Insert 25mm Bore 52mm Outside Diameter
RHP 1125-25CG Full Width Snap Ring Grub Screw Bearing Insert 25mm Bore 52mm Outside Diameter
Regular price
€30,95
ex VAT
Regular price
Sale price
€30,95
ex VAT
In stock
Price Break
10+
€22,97
20+
€21,68
30+
€21,42
40+
€21,16
50+
€20,90
75+
€20,65
100+
€19,36
200+
€19,10
250+
€18,84
500+
€18,58
1000+
€18,06
Share this product
Description
Description
|
RHP 1100 - CG Series Bearing Insert: This insert type is a full width sealed bearing with a parallel outer diameter and comes fitted with one snap ring (there are 2 grooves allowing its position to be moved to suit), they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft after installation. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Style:
- 1125
Technical
Technical
| Bore | 25mm |
|---|---|
| D | 52mm |
| D1 | 57.81mm |
| C | 19.05mm |
| C1 | 2.39mm |
| C2 | 4.39mm |
| B | 34.11mm |
| s | 14.32mm |
| d1 | 34.01mm |
| f | 1.12mm |
| M | 5.35mm |
| r | 1mm |
| r1 | 0.5mm |
| Dynamic load Cr | 14000 N |
| Static load Cor | 7880 N |
| Rec max speed | 6250 rpm |
| Weight | 0.31 kg |
