SKU: 1130-1.1/8CG-RHP

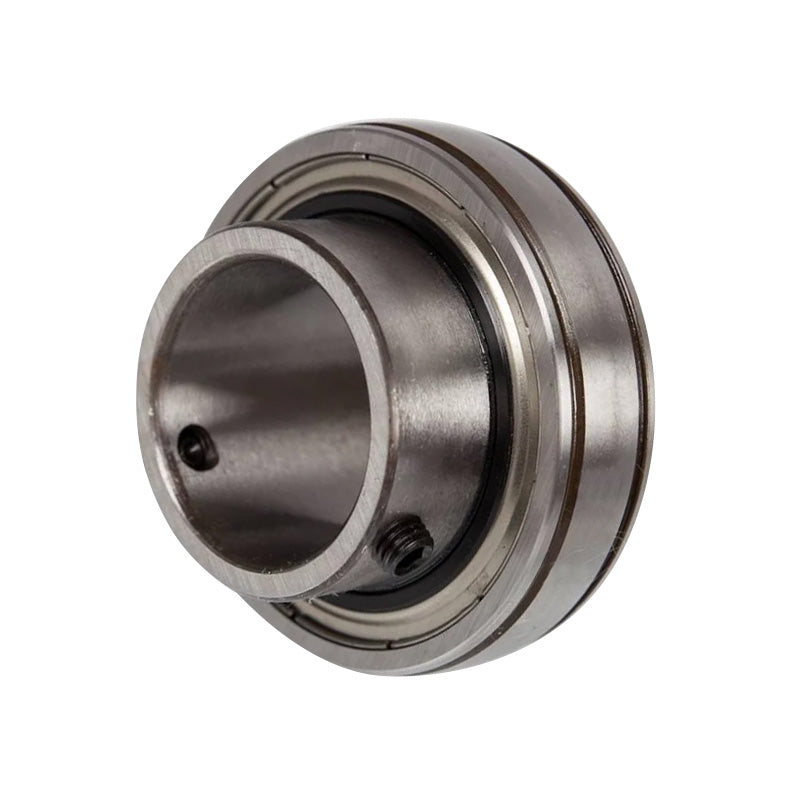

RHP 1130-1-1/8CG Full Width Snap Ring Grub Screw Bearing Insert 1-1/8 inch Bore 62mm Outside Diameter
RHP 1130-1-1/8CG Full Width Snap Ring Grub Screw Bearing Insert 1-1/8 inch Bore 62mm Outside Diameter
Regular price
€37,95
ex VAT
Regular price
Sale price
€37,95
ex VAT
In stock
Price Break
10+
€28,37
20+
€26,78
30+
€26,46
40+
€26,14
50+
€25,82
75+
€25,50
100+
€23,91
200+
€23,59
250+
€23,27
500+
€22,95
1000+
€22,32
Share this product
Description
Description
|
RHP 1100 - CG Series Bearing Insert: This insert type is a full width sealed bearing with a parallel outer diameter and comes fitted with one snap ring (there are 2 grooves allowing its position to be moved to suit), they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft after installation. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Outside Diameter:
- 62mm
- Style:
- 1130
Technical
Technical
| Bore | 1-1/8 inch |
|---|---|
| D | 2.4409mm |
| D1 | 2.665mm |
| C | 0.875mm |
| C1 | 0.125mm |
| C2 | 0.201mm |
| B | 1.5mm |
| s | 0.627mm |
| d1 | 1.575mm |
| f | 0.67mm |
| M | 0.23mm |
| r | 0.039mm |
| r1 | 0.02mm |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 0.42 kg |
