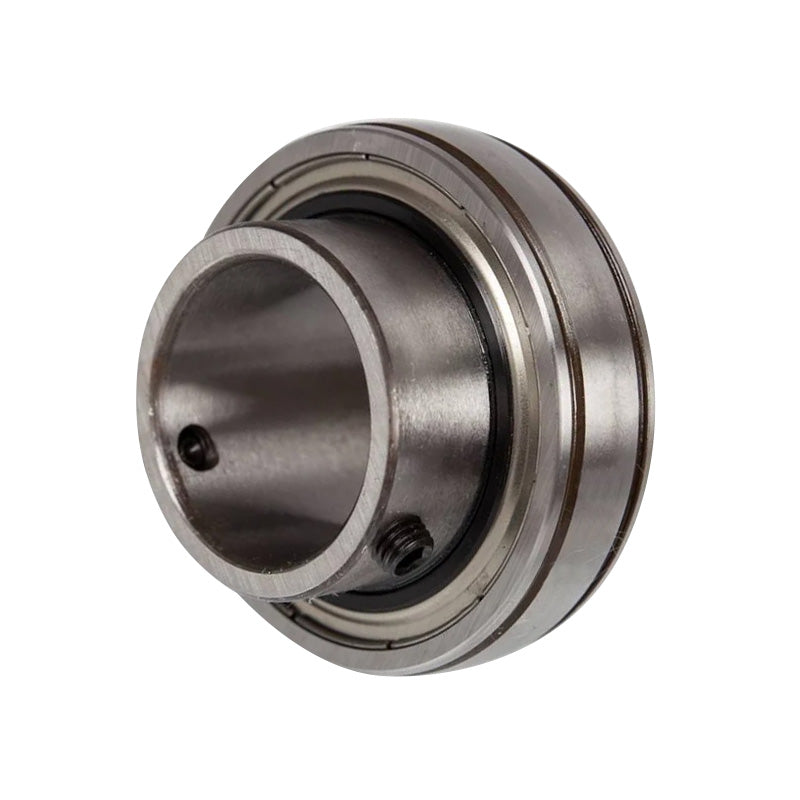

RHP 1130-30CG Full Width Snap Ring Grub Screw Bearing Insert 30mm Bore 62mm Outside Diameter
RHP 1130-30CG Full Width Snap Ring Grub Screw Bearing Insert 30mm Bore 62mm Outside Diameter
Regular price
€35,95
ex VAT
Regular price
Sale price
€35,95
ex VAT
In stock
Price Break
10+
€26,75
20+
€25,25
30+
€24,95
40+
€24,65
50+
€24,35
75+
€24,05
100+
€22,54
200+
€22,24
250+
€21,94
500+
€21,64
1000+
€21,04
Share this product
Description
Description
|
RHP 1100 - CG Series Bearing Insert: This insert type is a full width sealed bearing with a parallel outer diameter and comes fitted with one snap ring (there are 2 grooves allowing its position to be moved to suit), they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft after installation. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 62mm
- Style:
- 1130
Technical
Technical
| Bore | 30mm |
|---|---|
| D | 62mm |
| D1 | 67.69mm |
| C | 22.22mm |
| C1 | 3.18mm |
| C2 | 5.1mm |
| B | 38.1mm |
| s | 15.93mm |
| d1 | 40mm |
| f | 1.7mm |
| M | 5.85mm |
| r | 1mm |
| r1 | 0.5mm |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 0.42 kg |
