SKU: 1135-1.7/16CG-RHP
RHP 1135-1-7/16CG Full Width Snap Ring Grub Screw Bearing Insert 1-7/16 inch Bore 72mm Outside Diameter
RHP 1135-1-7/16CG Full Width Snap Ring Grub Screw Bearing Insert 1-7/16 inch Bore 72mm Outside Diameter
Regular price
€45,95
ex VAT
Regular price
Sale price
€45,95
ex VAT
In stock
Price Break
10+
€34,34
20+
€32,41
30+
€32,02
40+
€31,63
50+
€31,25
75+
€30,86
100+
€28,93
200+
€28,55
250+
€28,16
500+
€27,78
1000+
€27,01
Share this product
Description
Description
|

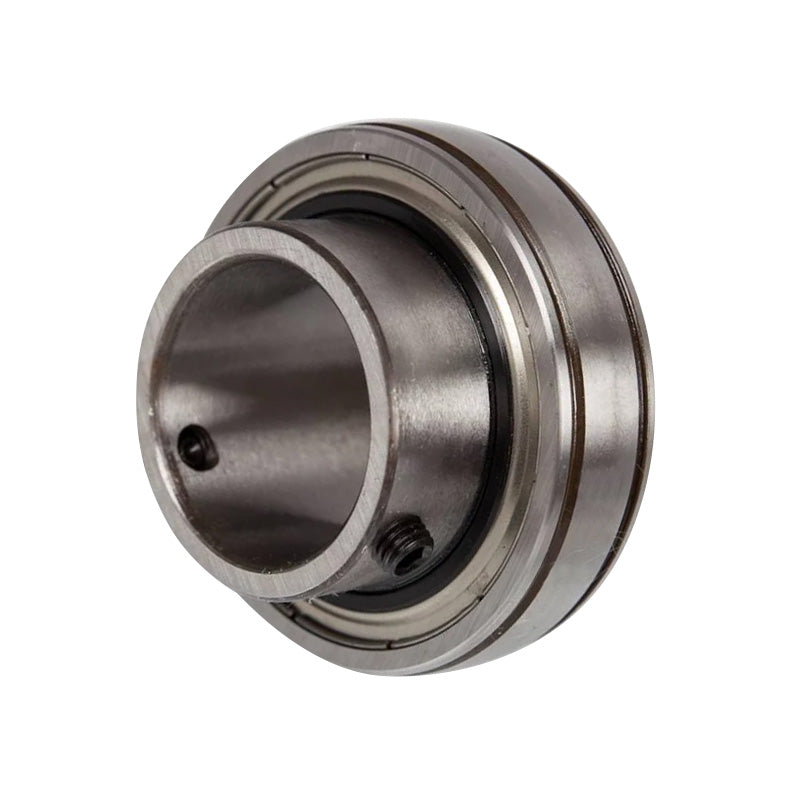

RHP 1100 - CG Series Bearing Insert: This insert type is a full width sealed bearing with a parallel outer diameter and comes fitted with one snap ring (there are 2 grooves allowing its position to be moved to suit), they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft after installation. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 36.51mm = 1.437 (1-7/16) inch
- Outside Diameter:
- 72mm
- Style:
- 1135
Technical
Technical
| Bore | 1-7/16 inch |
|---|---|
| D | 2.8346mm |
| D1 | 3.091mm |
| C | 0.937mm |
| C1 | 0.125mm |
| C2 | 0.221mm |
| B | 1.688mm |
| s | 0.69mm |
| d1 | 1.838mm |
| f | 0.67mm |
| M | 0.289mm |
| r | 0.039mm |
| r1 | 0.039mm |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 0.61 kg |
