SKU: 1135-35CG-RHP

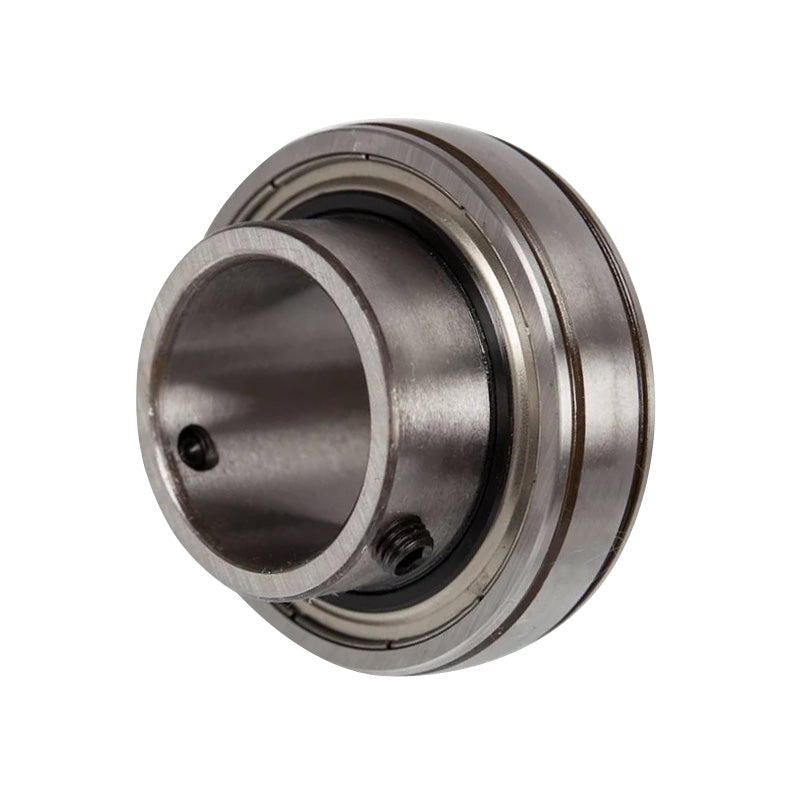

RHP 1135-35CG Full Width Snap Ring Grub Screw Bearing Insert 35mm Bore 72mm Outside Diameter
RHP 1135-35CG Full Width Snap Ring Grub Screw Bearing Insert 35mm Bore 72mm Outside Diameter
Regular price
€28,90
ex VAT
Regular price
Sale price
€28,90
ex VAT
In stock
Price Break
10+
€25,72
19+
€24,28
29+
€23,99
39+
€23,70
49+
€23,41
74+
€23,12
99+
€21,68
199+
€21,39
249+
€21,10
499+
€20,81
999+
€20,23
Couldn't load pickup availability
Description
Description
|
RHP 1100 - CG Series Bearing Insert: This insert type is a full width sealed bearing with a parallel outer diameter and comes fitted with one snap ring (there are 2 grooves allowing its position to be moved to suit), they have the benefit of being re-lubricatable after installation. There are 2 grub screws to allow tightening against the shaft after installation. Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Style:
- 1135
- Type:
- Parallel Outer
Technical
Technical
| Bore | 35mm |
|---|---|
| D | 72mm |
| D1 | 78.51mm |
| C | 23.81mm |
| C1 | 3.18mm |
| C2 | 5.61mm |
| B | 42.88mm |
| s | 17.53mm |
| d1 | 46.69mm |
| f | 1.7mm |
| M | 7.35mm |
| r | 1mm |
| r1 | 1mm |
| Dynamic load Cr | 25700 N |
| Static load Cor | 15300 N |
| Rec max speed | 4500 rpm |
| Weight | 0.61 kg |
