Renold Synergy 120-1-NO11 ANSI / AS Simplex Chain Cottered Connecting Link 1-1/2 inch Pitch
Renold Synergy 120-1-NO11 ANSI / AS Simplex Chain Cottered Connecting Link 1-1/2 inch Pitch
Regular price
€128,25
ex VAT
Regular price
Sale price
€128,25
ex VAT
In stock
Price Break
10+
€114,14
19+
€107,73
29+
€106,45
39+
€105,17
49+
€103,88
74+
€102,60
99+
€96,19
199+
€94,91
249+
€93,62
499+
€92,34
999+
€89,78
Couldn't load pickup availability
Description
Description

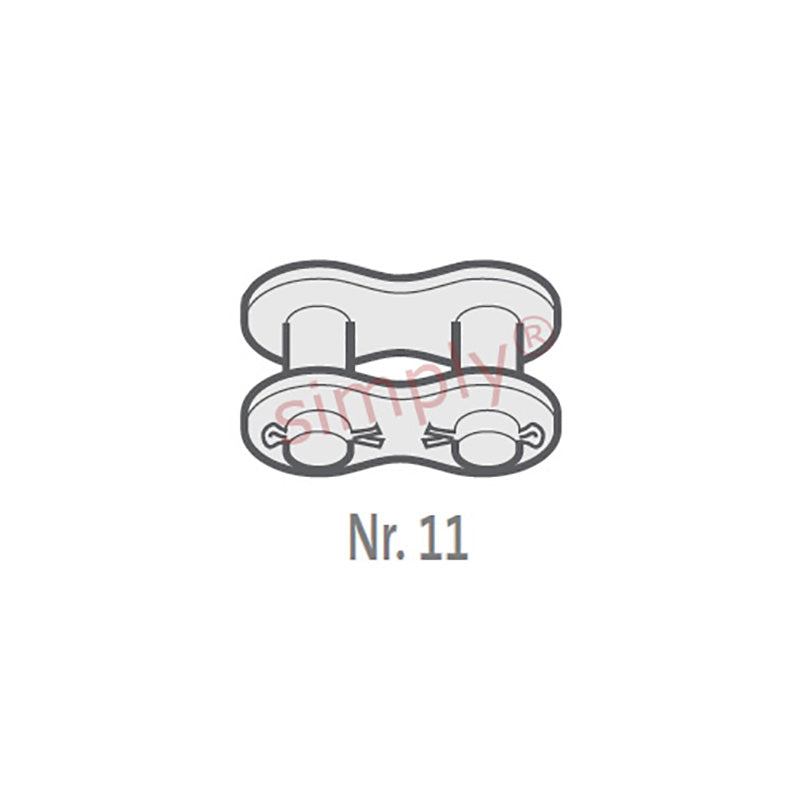

| Renold No. 11 ANSI Simplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (A) | 1.5 inch |
|---|---|
| Pitch (A) | 38.1mm |
| Inside Width min (B) | 25.23mm |
| Roller Diameter max (C) | 22.23mm |
| Plate Height max (D) | 36.2mm |
| Plate Width Inner max (E) | 4.8mm |
| Plate Width Outer max (F) | 4.8mm |
| Pin Diameter max (G) | 11.11mm |
| Pin Length max (H1) | 49.3mm |
| Connecting Link Extension max (J) | 5.3mm |
| ISO606 Tensile Strength min | 125000 N |
| Weight | 0.079kg/m |
