SKU: 120-2-BB-NO11-RENOLD
Renold Blue Box 120-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-1/2 inch Pitch
Renold Blue Box 120-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-1/2 inch Pitch
Regular price
€103,95
ex VAT
Regular price
Sale price
€103,95
ex VAT
In stock
Price Break
2+
€78,81
5+
€74,38
10+
€73,50
29+
€72,61
49+
€71,73
75+
€70,84
100+
€66,41
200+
€65,53
250+
€64,64
500+
€63,76
1000+
€61,99
Description
Description

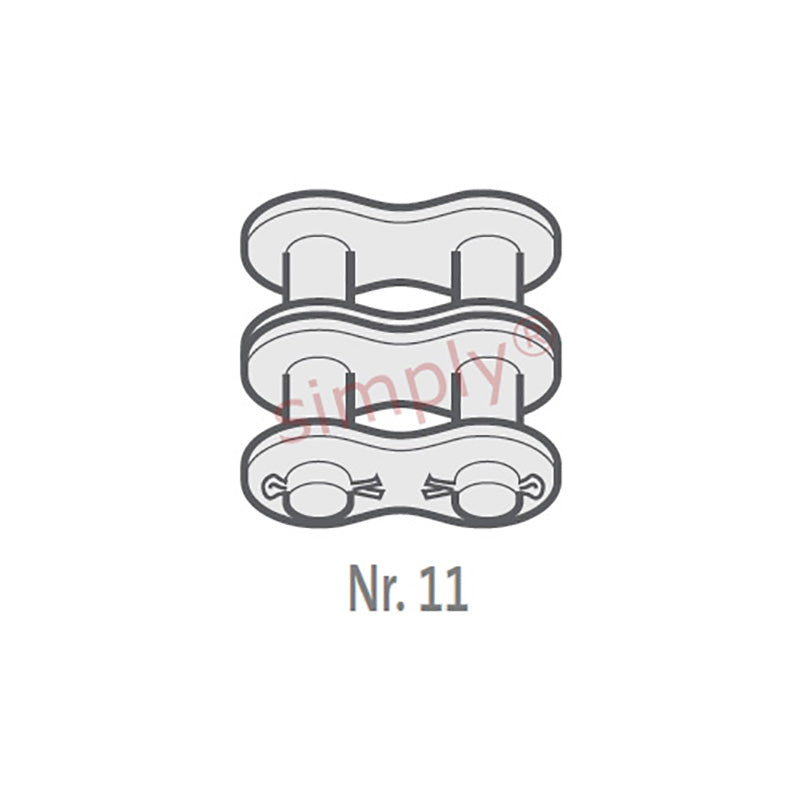

| Renold No. 11 ANSI Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 38.1mm = 1.5 (1-1/2) inch
Technical
Technical
| Pitch (A) | 1.5 inch |
|---|---|
| Pitch (A) | 38.1mm |
| Inside Width min (B) | 25.23mm |
| Roller Diameter max (C) | 22.23mm |
| Plate Height max (D) | 36.2mm |
| Plate Width Inner max (E) | 4.8mm |
| Plate Width Outer max (F) | 4.8mm |
| Pin Diameter max (G) | 11.11mm |
| Pin Length max (H2) | 94.7mm |
| Connecting Link Extension max (J) | 5.3mm |
| Transverse Pitch nom (K) | 45.44mm |
| ISO606 Tensile Strength min | 250000 N |
| Weight | 0.156kg/m |
