SKU: 1218K-EU

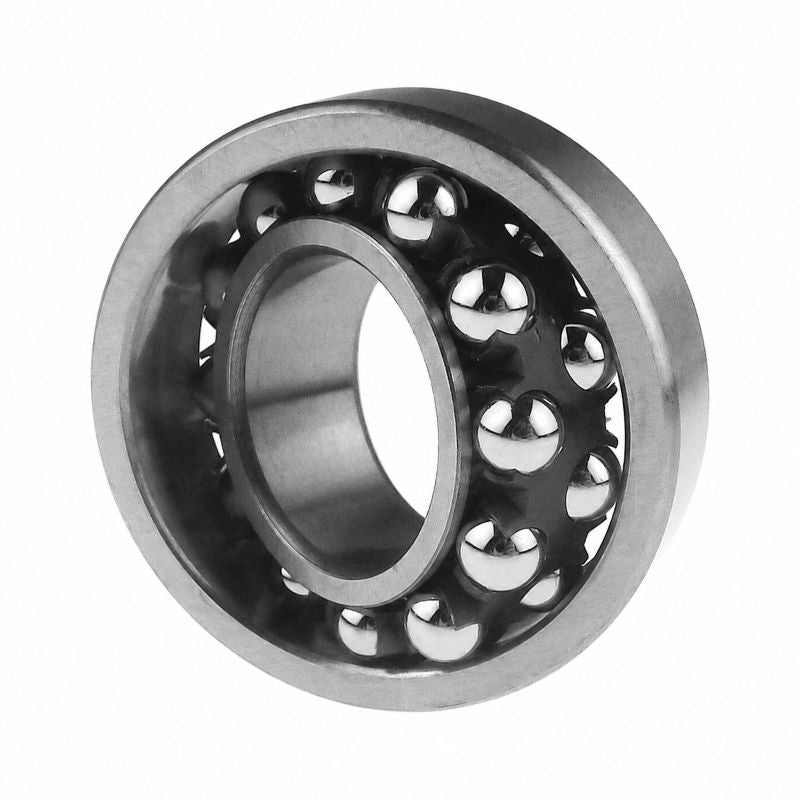

1218K Budget Open Self Aligning Ball Bearing with Taper Bore 90x160x30mm

1218K Budget Open Self Aligning Ball Bearing with Taper Bore 90x160x30mm
Regular price €96,95 ex VAT
Regular price Sale price €96,95 ex VAT
Sale Sold out

Equivalent to: 1218EK

In stock

Price Break
10+ €73,40
19+ €69,27
29+ €68,45
39+ €67,62
49+ €66,80
74+ €65,97
99+ €61,85
199+ €61,03
249+ €60,20
499+ €59,38
999+ €57,73
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
d 90mm
D 160mm
B 30mm
D1 142mm
d1d2 112mm
r1r2 2mm
da min 101mm
Da max 149mm
ra max 2mm
--- Calculation Data
C 57.2kN
Co 23.651
Pu 1.08kN
ref 8500rpm
limit 5300rpm
e 0.17
Y1 3.7
Y2 5.7
Y0 4
--- Weights
kg 2.5
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H218+sleeve>H218</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HA218+sleeve>HA218</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE218+sleeve>HE218</a>
