SKU: 1220-3/4G-RHP

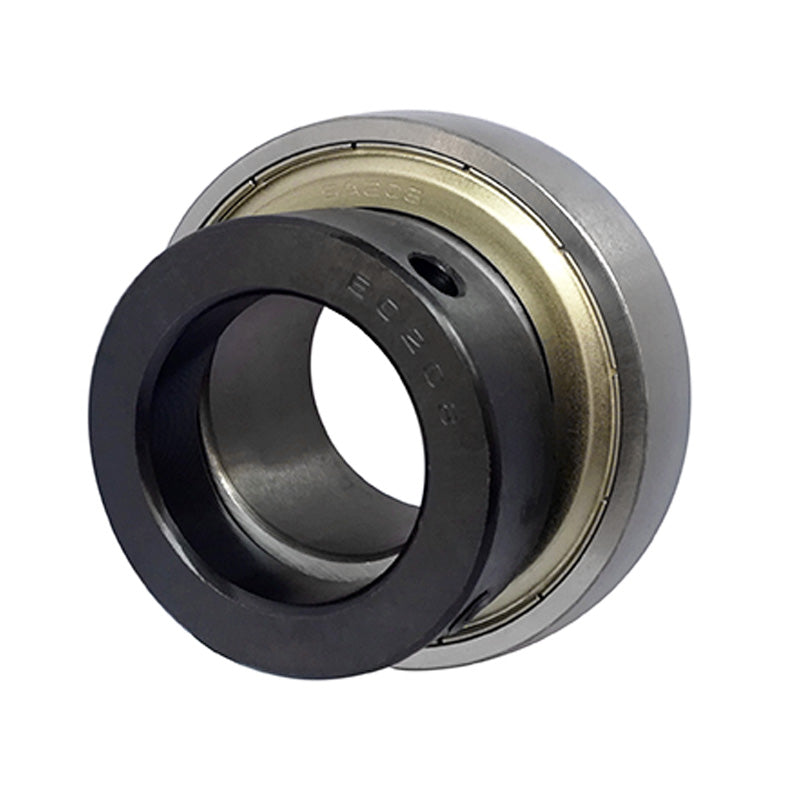

RHP 1220-3/4G Spherical Outer Flat Back Bearing Insert 3/4inch Bore 47mm Outside Diameter

Name: RHP 1220-3/4G Spherical Outer Flat Back Bearing Insert 3/4inch Bore 47mm Outside Diameter
Brand: RHP
SKU: 1220-3/4G-RHP
Price: 24.95 EUR
Availability: InStock

€24,95 ex VAT

Sale Sold out

In stock

Price Break

10+ €18,97

20+ €17,90

30+ €17,69

40+ €17,48

50+ €17,26

75+ €17,05

100+ €15,99

200+ €15,77

250+ €15,56

500+ €15,35

1000+ €14,92

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

RHP 1000 G Series: Flat back bearing insert with spherical outer race and and 2 grub screws 120 degrees apart to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing

Brand / Quality:: RHP - High Quality
Inside Diameter:: 19.05mm = 0.75 (3/4) inch
Outside Diameter:: 47mm
Style:: 1220

Technical

Bore	3/4 inch
D	1.8504 inch
C	0.551 inch
B1	1.015 inch
s1	0.298 inch
d1	1.122 inch
M	0.211 inch
r	0.039 inch
Dynamic load Cr	12800 N
Static load Cor	6650 N
Rec max speed	6700 rpm
Weight	0.1 kg
