SKU: 1230-1.1/4ECG-RHP

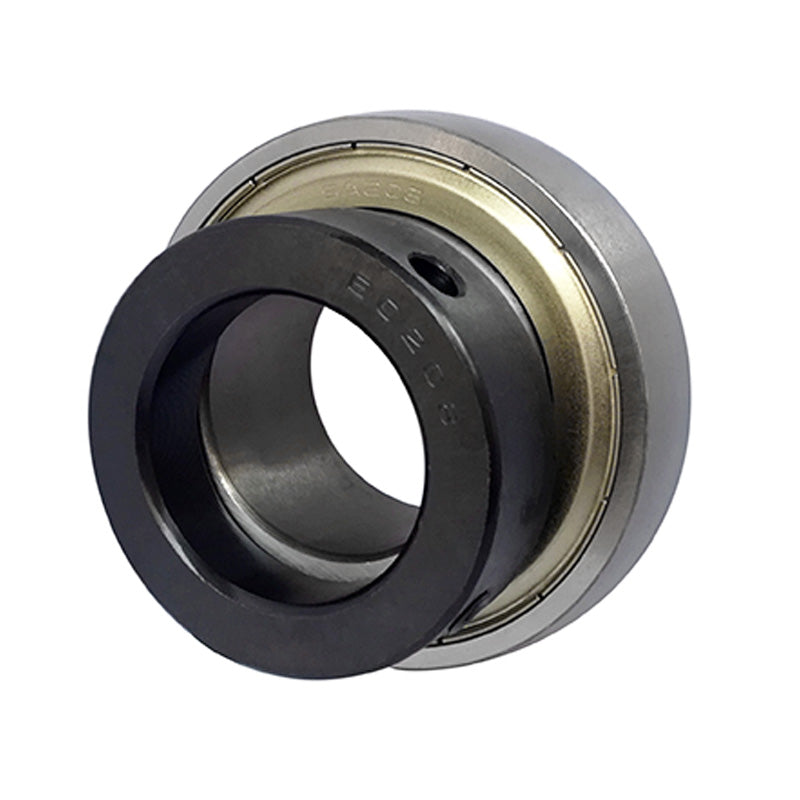

RHP 1230-1-1/4ECG Spherical Outer Flat Back Collar Bearing Insert 1-1/4 inch Bore 62mm Outside Diameter
RHP 1230-1-1/4ECG Spherical Outer Flat Back Collar Bearing Insert 1-1/4 inch Bore 62mm Outside Diameter
Regular price
€36,95
ex VAT
Regular price
Sale price
€36,95
ex VAT
In stock
Price Break
10+
€27,47
20+
€25,92
30+
€25,62
40+
€25,31
50+
€25,00
75+
€24,69
100+
€23,15
200+
€22,84
250+
€22,53
500+
€22,22
1000+
€21,60
Description
Description
|
RHP 1200 ECG Series: Flat back bearing insert with spherical outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, eccentric collar fixing, re-lubricatable |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 62mm
- Style:
- 1230
Technical
Technical
| Bore | 1-1/4 inch |
|---|---|
| D | 2.4409 inch |
| C | 0.63 inch |
| B2 | 1.405 inch |
| s1 | 0.356 inch |
| d2 | 1.75 inch |
| r | 0.039 inch |
| Dynamic load Cr | 19500 N |
| Static load Cor | 11300 N |
| Rec max speed | 5300 rpm |
| Weight | 0.4 kg |
