SKU: 12B-1-NO11-MB
Branded 12B-1-NO11 BS Simplex Chain Cottered Connecting Link 3/4 inch Pitch
Branded 12B-1-NO11 BS Simplex Chain Cottered Connecting Link 3/4 inch Pitch
Regular price
€4,95
ex VAT
Regular price
Sale price
€4,95
ex VAT
Equivalent to: 12B-1-CL-COT
In stock
Price Break
2+
€3,24
5+
€3,05
10+
€3,02
29+
€2,98
49+
€2,95
75+
€2,91
100+
€2,73
200+
€2,69
250+
€2,65
500+
€2,62
1000+
€2,55
Description
Description

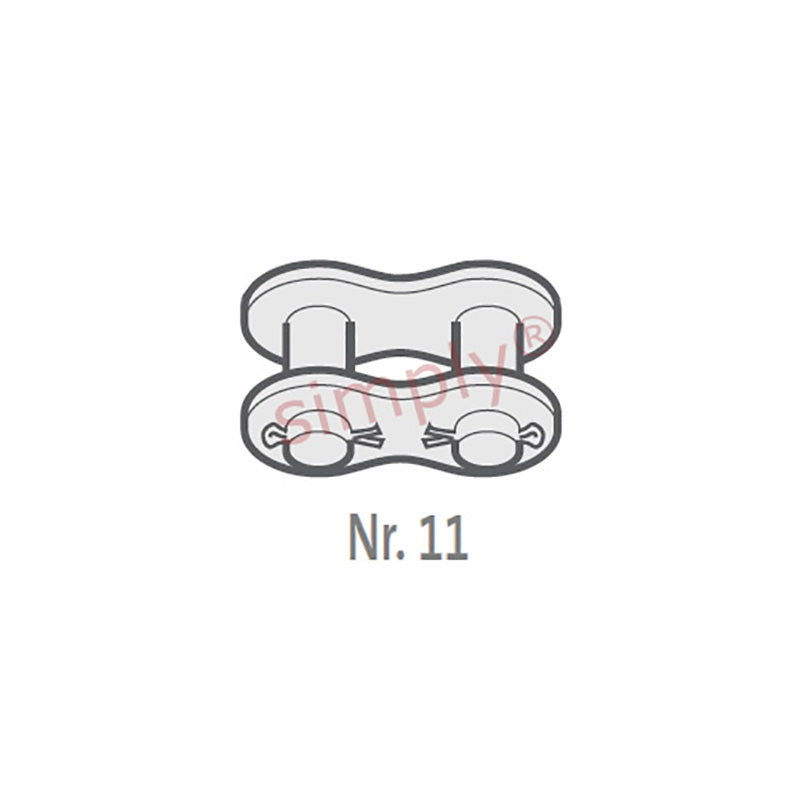

Branded COT / No. 11 European (BS) Simplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Equivalent: 12B-1-CL-COT
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 11.68mm |
| Roller Diameter max (C) | 12.07mm |
| Plate Height max (D) | 16.1mm |
| Plate Width Inner max (E) | 1.8mm |
| Plate Width Outer max (F) | 1.8mm |
| Pin Diameter max (G) | 5.72mm |
| Pin Length max (H1) | 22.5mm |
| Connecting Link Extension max (J) | 1.5mm |
| ISO606 Tensile Strength min | 28900 N |
| Weight | 0.008kg/m |
