SKU: 12B-2-NO30-MB
Branded 12B-2-NO30 BS Duplex Chain Double Cranked Link 3/4 inch Pitch
Branded 12B-2-NO30 BS Duplex Chain Double Cranked Link 3/4 inch Pitch
Regular price
€8,95
ex VAT
Regular price
Sale price
€8,95
ex VAT
Equivalent to: 12B-2-DOL
In stock
Price Break
2+
€6,25
5+
€5,90
10+
€5,83
29+
€5,76
49+
€5,69
75+
€5,62
100+
€5,27
200+
€5,20
250+
€5,13
500+
€5,06
1000+
€4,92
Description
Description

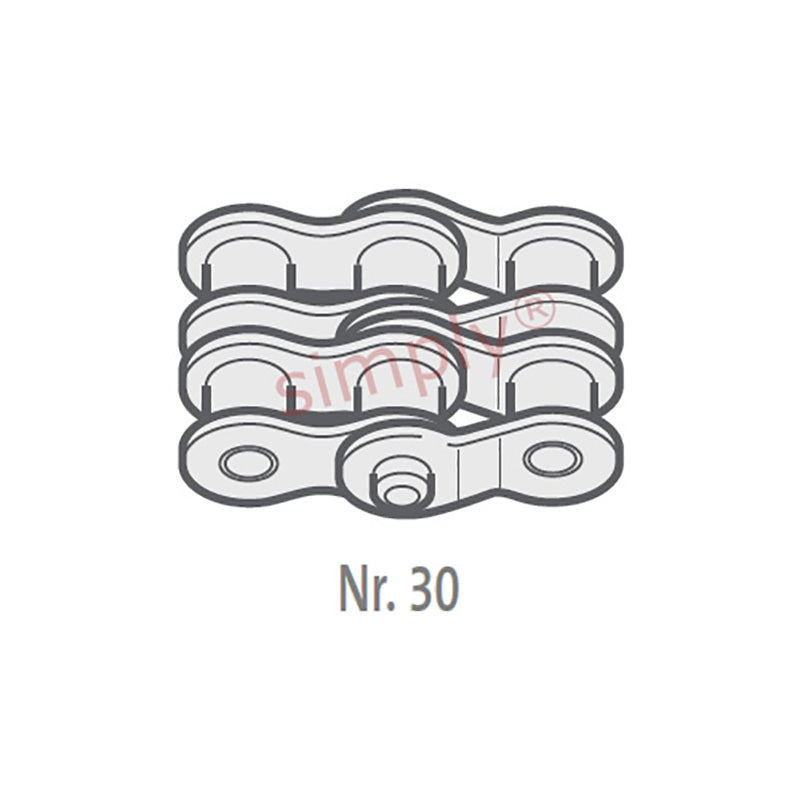

Branded DOL / No. 30 European (BS) Duplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Equivalent: 12B-2-DOL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 11.68mm |
| Roller Diameter max (C) | 12.07mm |
| Plate Height max (D) | 16.1mm |
| Plate Width Inner max (E) | 1.8mm |
| Plate Width Outer max (F) | 1.8mm |
| Pin Diameter max (G) | 5.72mm |
| Pin Length max (H2) | 42.1mm |
| Connecting Link Extension max (J) | 1.5mm |
| Transverse Pitch nom (K) | 19.46mm |
| ISO606 Tensile Strength min | 57800 N |
| Weight | 0.015kg/m |
