SKU: 12B-3-NO30-MB

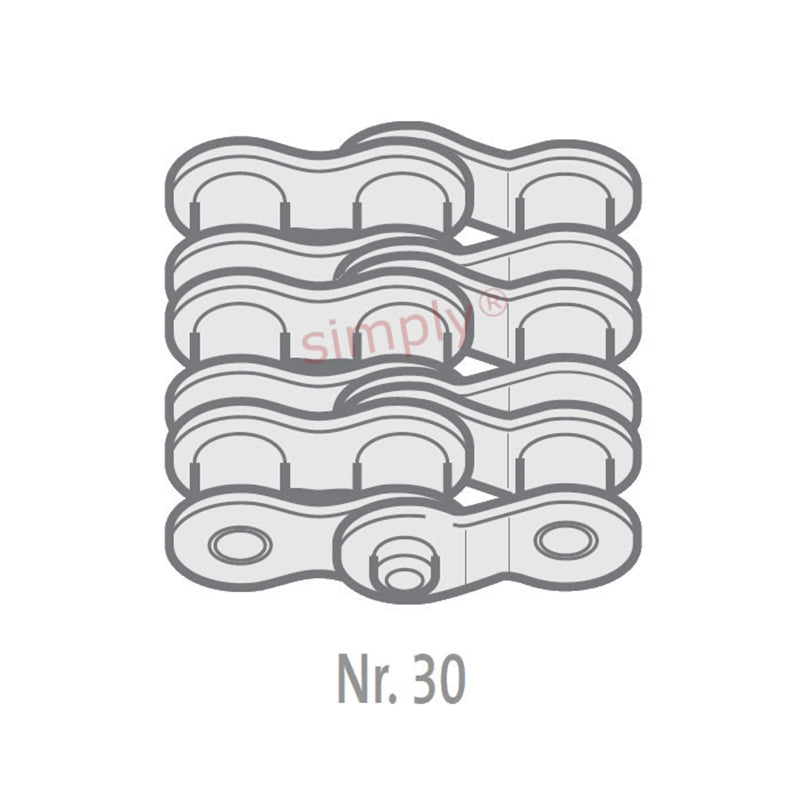

Branded 12B-3-NO30 BS Triplex Chain Double Cranked Link 3/4 inch Pitch
Branded 12B-3-NO30 BS Triplex Chain Double Cranked Link 3/4 inch Pitch
Regular price
€7,74
ex VAT
Regular price
Sale price
€7,74
ex VAT
Equivalent to: 12B-3-DOL
In stock
Price Break
10+
€6,89
19+
€6,50
29+
€6,42
39+
€6,35
49+
€6,27
74+
€6,19
99+
€5,81
199+
€5,73
249+
€5,65
499+
€5,57
999+
€5,42
Couldn't load pickup availability
Share this product
Description
Description
Branded DOL / No. 30 European (BS) Triplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin.
Equivalent: 12B-3-DOL
- Brand / Quality:
- Major Brand - High Quality
- Chain Pitch:
- 19.05mm = 0.75 (3/4) inch
Technical
Technical
| Pitch (A) | 0.75 inch |
|---|---|
| Pitch (A) | 19.05mm |
| Inside Width min (B) | 11.68mm |
| Roller Diameter max (C) | 12.07mm |
| Plate Height max (D) | 16.1mm |
| Plate Width Inner max (E) | 1.8mm |
| Plate Width Outer max (F) | 1.8mm |
| Pin Diameter max (G) | 5.72mm |
| Pin Length max (H3) | 61.5mm |
| Connecting Link Extension max (J) | 4.5mm |
| ISO606 Tensile Strength min | 86700 N |
| Weight | 0.023kg/m |
