SKU: 1345-45EC-RHP

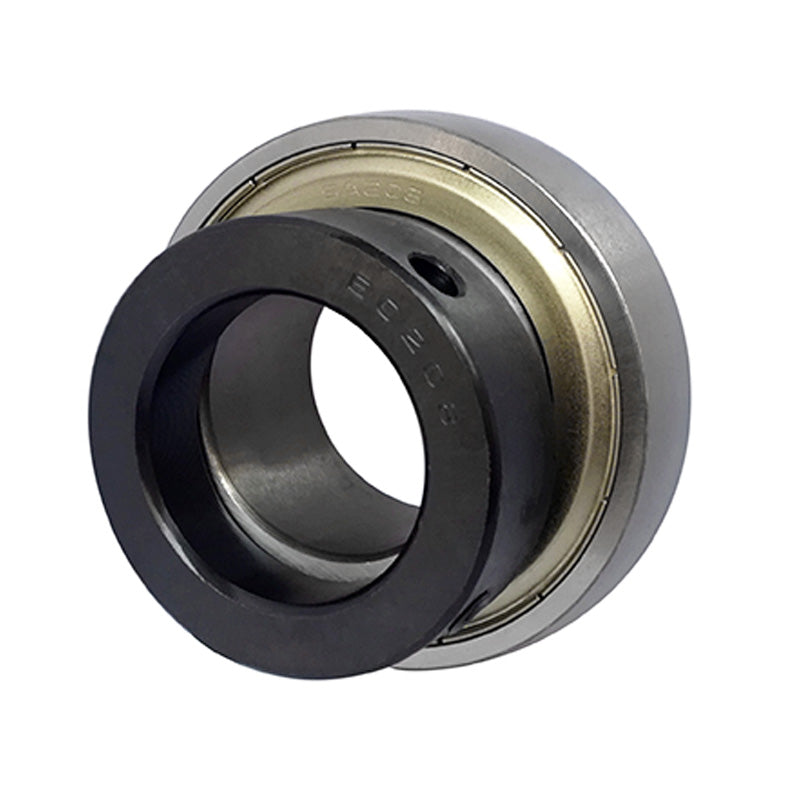

RHP 1345-45EC Parallel Outside Flat Back Collar Bearing Insert 45mm Bore 85mm Outside Diameter
RHP 1345-45EC Parallel Outside Flat Back Collar Bearing Insert 45mm Bore 85mm Outside Diameter
Regular price
€54,95
ex VAT
Regular price
Sale price
€54,95
ex VAT
In stock
Price Break
10+
€41,16
20+
€38,85
30+
€38,38
40+
€37,92
50+
€37,46
75+
€37,00
100+
€34,69
200+
€34,22
250+
€33,76
500+
€33,30
1000+
€32,37
Description
Description
|
RHP 1300 EC Series: Flat back bearing insert with parallel outer race and eccentric collar and grub screw to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, eccentric collar fixing, sealed for life |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Style:
- 1345
Technical
Technical
| Bore | 45mm |
|---|---|
| D | 85mm |
| C | 19mm |
| B2 | 43.64mm |
| s1 | 11.05mm |
| d2 | 63.5mm |
| r | 1mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 0.87 kg |
