SKU: 140-2-BB-NO12-RENOLD
Renold Blue Box 140-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 1-3/4 inch Pitch
Renold Blue Box 140-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 1-3/4 inch Pitch
Regular price
€300,35
ex VAT
Regular price
Sale price
€300,35
ex VAT
In stock
Price Break
10+
€267,31
19+
€252,29
29+
€249,29
39+
€246,29
49+
€243,28
74+
€240,28
99+
€225,26
199+
€222,26
249+
€219,26
499+
€216,25
999+
€210,25
Couldn't load pickup availability
Description
Description

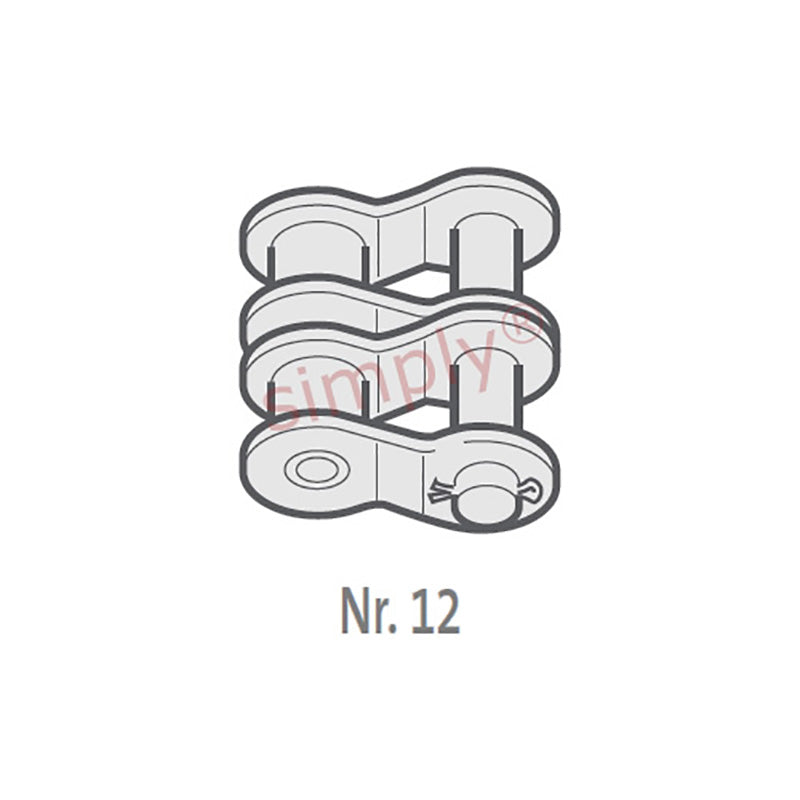

| Renold No. 12 ANSI Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 44.45mm = 1.75 (1-3/4) inch
Technical
Technical
| Pitch (A) | 1.75 inch |
|---|---|
| Pitch (A) | 44.45mm |
| Inside Width min (B) | 25.23mm |
| Roller Diameter max (C) | 25.4mm |
| Plate Height max (D) | 42.23mm |
| Plate Width Inner max (E) | 5.61mm |
| Plate Width Outer max (F) | 5.61mm |
| Pin Diameter max (G) | 12.71mm |
| Pin Length max (H2) | 101.8mm |
| Connecting Link Extension max (J) | 5.2mm |
| Transverse Pitch nom (K) | 48.87mm |
| ISO606 Tensile Strength min | 340000 N |
| Weight | 0.77kg/m |
