SKU: 140-2-NO11-DUN
Branded 140-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-3/4 inch Pitch
Branded 140-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 1-3/4 inch Pitch
Regular price
€24,97
ex VAT
Regular price
Sale price
€24,97
ex VAT
Equivalent to: 140-2-CL-COT 140-2-CL
In stock
Price Break
10+
€22,22
19+
€20,97
29+
€20,73
39+
€20,48
49+
€20,23
74+
€19,98
99+
€18,73
199+
€18,48
249+
€18,23
499+
€17,98
999+
€17,48
Couldn't load pickup availability
Description
Description

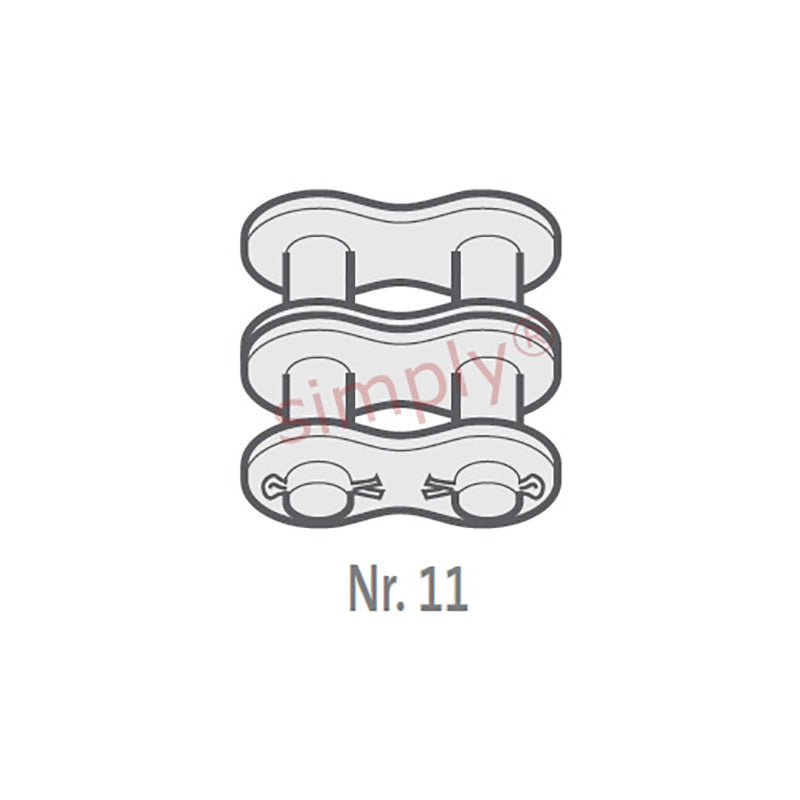

Branded COT / No. 11 ANSI Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Equivalent: 140-2-CL-COT 140-2-CL
- Brand / Quality:
- Branded - Good Quality
- Pitch:
- 44.45mm = 1.75 (1-3/4) inch
Technical
Technical
| Pitch (A) | 1.75 inch |
|---|---|
| Pitch (A) | 44.45mm |
| Inside Width min (B) | 25.22mm |
| Roller Diameter max (C) | 25.4mm |
| Plate Height max (D) | 42mm |
| Plate Width Inner max (E) | 5.6mm |
| Plate Width Outer max (F) | 5.6mm |
| Pin Diameter max (G) | 12.7mm |
| Pin Length max (H2) | 103.1mm |
| Connecting Link Extension max (J) | 4.80000000000001mm |
| Transverse Pitch nom (K) | 48.87mm |
| ISO606 Tensile Strength min | 340000 N |
| Weight | 0.77kg/m |
