SKU: 140-2-NO12-MB
Branded 140-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 1-3/4 inch Pitch
Branded 140-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 1-3/4 inch Pitch
Regular price
€43,95
ex VAT
Regular price
Sale price
€43,95
ex VAT
Equivalent to: 140-2-OL
In stock
Price Break
2+
€33,30
5+
€31,43
10+
€31,05
29+
€30,68
49+
€30,30
75+
€29,93
100+
€28,06
200+
€27,69
250+
€27,31
500+
€26,94
1000+
€26,19
Description
Description

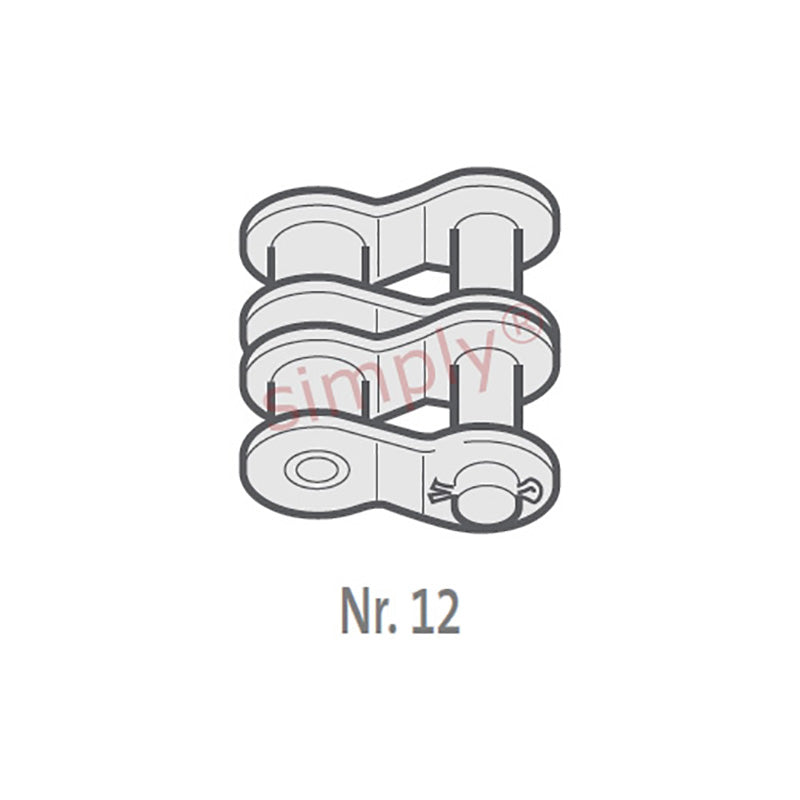

Branded OL / No. 12 ANSI Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Equivalent: 140-2-OL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 44.45mm = 1.75 (1-3/4) inch
Technical
Technical
| Pitch (A) | 1.75 inch |
|---|---|
| Pitch (A) | 44.45mm |
| Inside Width min (B) | 25.22mm |
| Roller Diameter max (C) | 25.4mm |
| Plate Height max (D) | 42mm |
| Plate Width Inner max (E) | 5.6mm |
| Plate Width Outer max (F) | 5.6mm |
| Pin Diameter max (G) | 12.7mm |
| Pin Length max (H2) | 103.1mm |
| Connecting Link Extension max (J) | 4.80000000000001mm |
| Transverse Pitch nom (K) | 48.87mm |
| ISO606 Tensile Strength min | 340000 N |
| Weight | 0.77kg/m |
