SKU: 140-3-SD-NO12-RENOLD
Renold SD 140-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1-3/4 inch Pitch
Renold SD 140-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1-3/4 inch Pitch
Regular price
€203,17
ex VAT
Regular price
Sale price
€203,17
ex VAT
In stock
Price Break
10+
€180,82
19+
€170,66
29+
€168,63
39+
€166,60
49+
€164,57
74+
€162,54
99+
€152,38
199+
€150,35
249+
€148,31
499+
€146,28
999+
€142,22
Couldn't load pickup availability
Description
Description

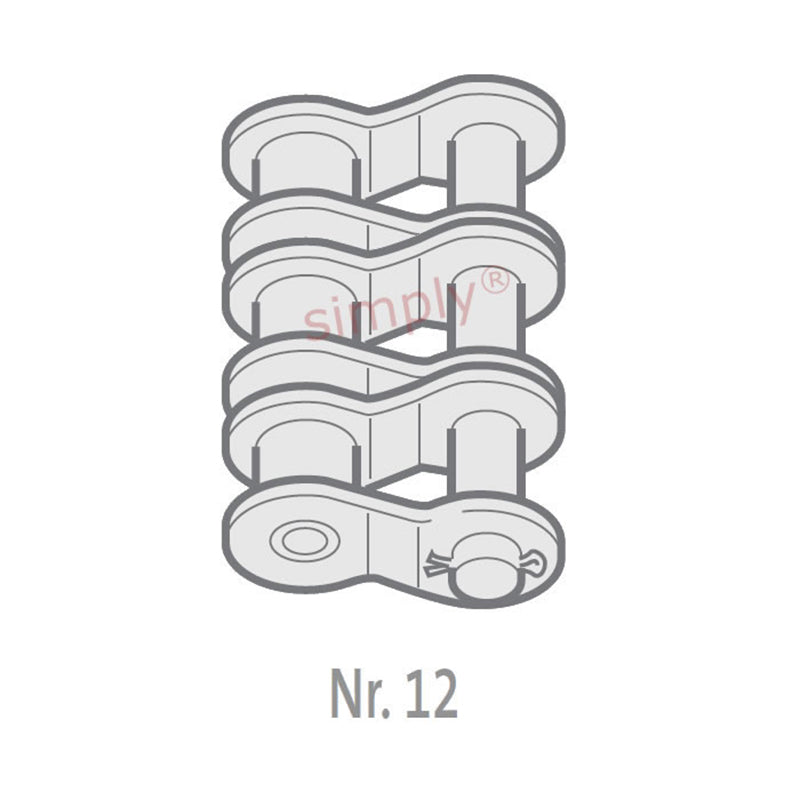

| Renold No. 12 ANSI Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 44.45mm = 1.75 (1-3/4) inch
Technical
Technical
| Pitch (A) | 1.75 inch |
|---|---|
| Pitch (A) | 44.45mm |
| Inside Width min (B) | 25.22mm |
| Roller Diameter max (C) | 25.4mm |
| Plate Height max (D) | 42mm |
| Plate Width Inner max (E) | 5.6mm |
| Plate Width Outer max (F) | 5.6mm |
| Pin Diameter max (G) | 12.7mm |
| Pin Length max (H1) | 143.4mm |
| Connecting Link Extension max (J) | 14.4mm |
| ISO606 Tensile Strength min | 510000 N |
| Weight | 48.87kg/m |
