SKU: 160-2-NO11-DUN
Branded 160-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 2 inch Pitch
Branded 160-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 2 inch Pitch
Regular price
€33,56
ex VAT
Regular price
Sale price
€33,56
ex VAT
Equivalent to: 160-2-CL-COT 160-2-CL
In stock
Price Break
10+
€29,87
19+
€28,19
29+
€27,85
39+
€27,52
49+
€27,18
74+
€26,85
99+
€25,17
199+
€24,83
249+
€24,50
499+
€24,16
999+
€23,49
Couldn't load pickup availability
Description
Description

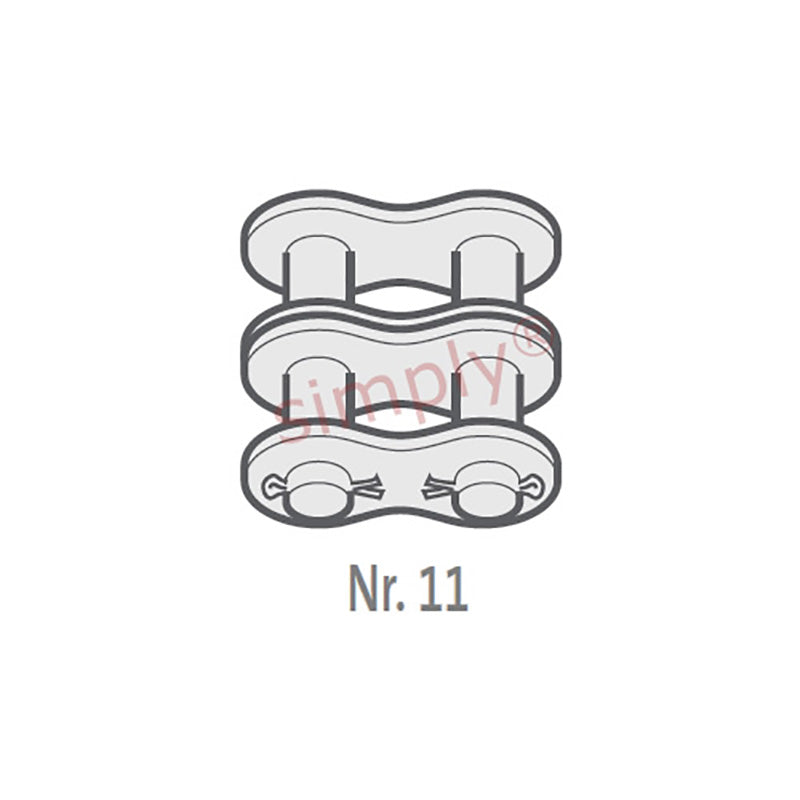

Branded COT / No. 11 ANSI Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Equivalent: 160-2-CL-COT 160-2-CL
- Brand / Quality:
- Branded - Good Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (A) | 2 inch |
|---|---|
| Pitch (A) | 50.8mm |
| Inside Width min (B) | 31.55mm |
| Roller Diameter max (C) | 28.58mm |
| Plate Height max (D) | 48mm |
| Plate Width Inner max (E) | 6.4mm |
| Plate Width Outer max (F) | 6.4mm |
| Pin Diameter max (G) | 14.27mm |
| Pin Length max (H2) | 122.9mm |
| Connecting Link Extension max (J) | 5.19999999999999mm |
| Transverse Pitch nom (K) | 58.55mm |
| ISO606 Tensile Strength min | 446000 N |
| Weight | 0.87kg/m |
