Renold 160-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 2 inch Pitch
Renold 160-2-NO12 ANSI / AS Duplex Chain Single Cranked Cottered Link 2 inch Pitch
Regular price
€60,53
ex VAT
Regular price
Sale price
€60,53
ex VAT
In stock
Price Break
10+
€53,87
19+
€50,85
29+
€50,24
39+
€49,63
49+
€49,03
74+
€48,42
99+
€45,40
199+
€44,79
249+
€44,19
499+
€43,58
999+
€42,37
Couldn't load pickup availability
Description
Description

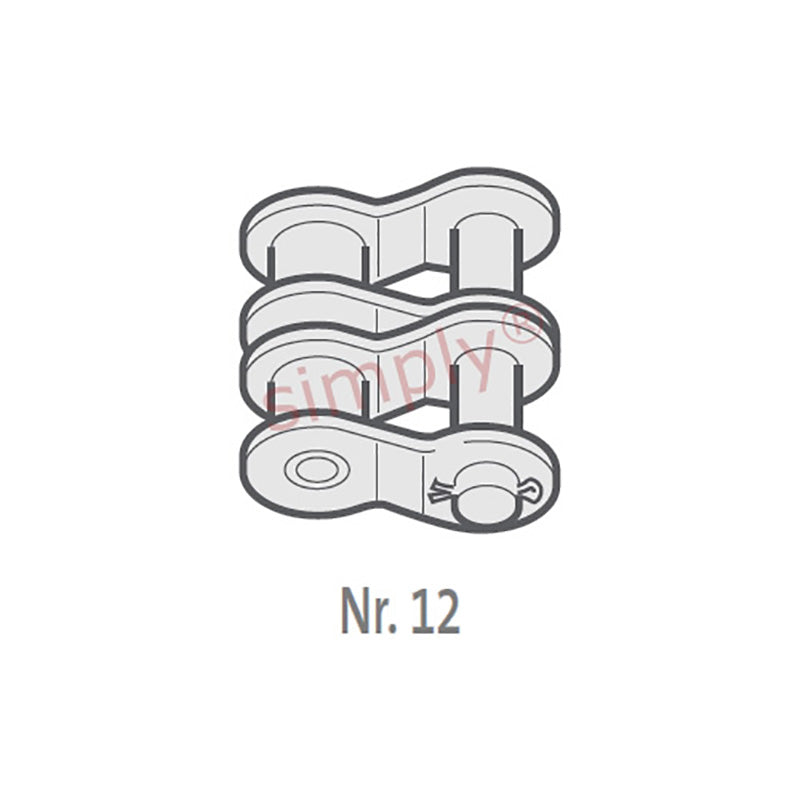

Branded OL / No. 12 ANSI Duplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (A) | 2 inch |
|---|---|
| Pitch (A) | 50.8mm |
| Inside Width min (B) | 31.55mm |
| Roller Diameter max (C) | 28.58mm |
| Plate Height max (D) | 48mm |
| Plate Width Inner max (E) | 6.4mm |
| Plate Width Outer max (F) | 6.4mm |
| Pin Diameter max (G) | 14.27mm |
| Pin Length max (H2) | 122.9mm |
| Connecting Link Extension max (J) | 5.19999999999999mm |
| Transverse Pitch nom (K) | 58.55mm |
| ISO606 Tensile Strength min | 446000 N |
| Weight | 0.87kg/m |
