SKU: 160-2-SD-NO11-RENOLD
Renold SD 160-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 2 inch Pitch
Renold SD 160-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 2 inch Pitch
Regular price
€85,95
ex VAT
Regular price
Sale price
€85,95
ex VAT
In stock
Price Break
2+
€64,92
5+
€61,27
10+
€60,54
29+
€59,81
49+
€59,08
75+
€58,35
100+
€54,71
200+
€53,98
250+
€53,25
500+
€52,52
1000+
€51,06
Description
Description

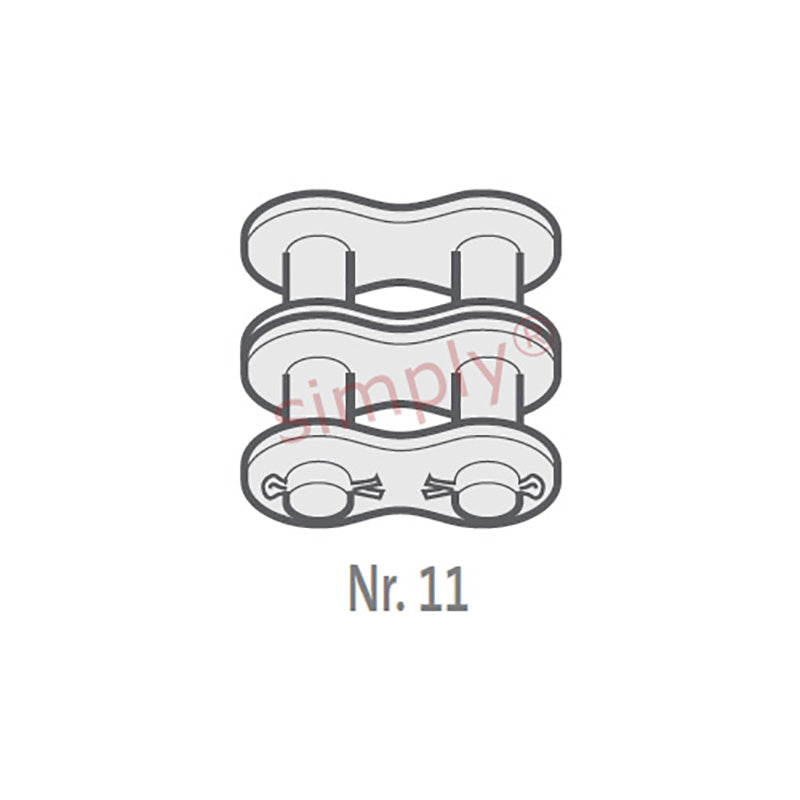

| Renold No. 11 ANSI Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (A) | 2 inch |
|---|---|
| Pitch (A) | 50.8mm |
| Inside Width min (B) | 31.55mm |
| Roller Diameter max (C) | 28.58mm |
| Plate Height max (D) | 48mm |
| Plate Width Inner max (E) | 6.4mm |
| Plate Width Outer max (F) | 6.4mm |
| Pin Diameter max (G) | 14.27mm |
| Pin Length max (H2) | 122.9mm |
| Connecting Link Extension max (J) | 5.19999999999999mm |
| Transverse Pitch nom (K) | 58.55mm |
| ISO606 Tensile Strength min | 446000 N |
| Weight | 0.87kg/m |
