SKU: 160-2-SYN-NO11-RENOLD
Renold Synergy 160-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 2 inch Pitch
Renold Synergy 160-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 2 inch Pitch
Regular price
€463,95
ex VAT
Regular price
Sale price
€463,95
ex VAT
In stock
Price Break
2+
€352,90
5+
€333,07
10+
€329,11
29+
€325,14
49+
€321,18
75+
€317,21
100+
€297,39
200+
€293,42
250+
€289,46
500+
€285,49
1000+
€277,56
Description
Description

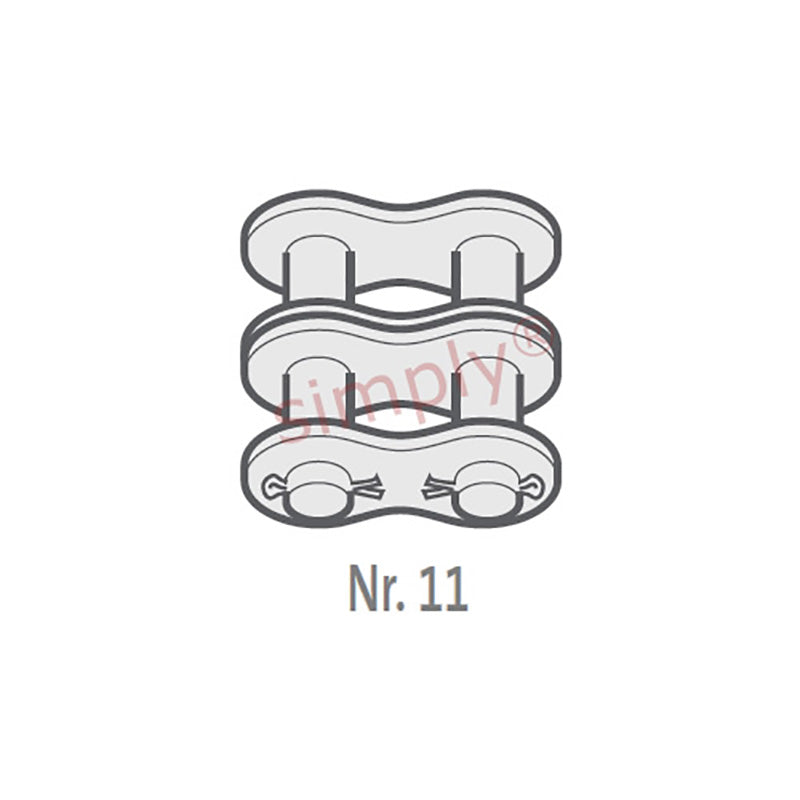

| Renold No. 11 ANSI Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (A) | 2 inch |
|---|---|
| Pitch (A) | 50.8mm |
| Inside Width min (B) | 31.55mm |
| Roller Diameter max (C) | 28.58mm |
| Plate Height max (D) | 48.26mm |
| Plate Width Inner max (E) | 6.35mm |
| Plate Width Outer max (F) | 6.35mm |
| Pin Diameter max (G) | 14.29mm |
| Pin Length max (H2) | 121.6mm |
| Connecting Link Extension max (J) | 6.5mm |
| Transverse Pitch nom (K) | 58.55mm |
| ISO606 Tensile Strength min | 446000 N |
| Weight | 0.87kg/m |
