SKU: 160-3-SD-NO12-RENOLD
Renold SD 160-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 2 inch Pitch
Renold SD 160-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 2 inch Pitch
Regular price
€245,95
ex VAT
Regular price
Sale price
€245,95
ex VAT
In stock
Price Break
2+
€186,71
5+
€176,22
10+
€174,12
29+
€172,02
49+
€169,92
75+
€167,83
100+
€157,34
200+
€155,24
250+
€153,14
500+
€151,04
1000+
€146,85
Description
Description

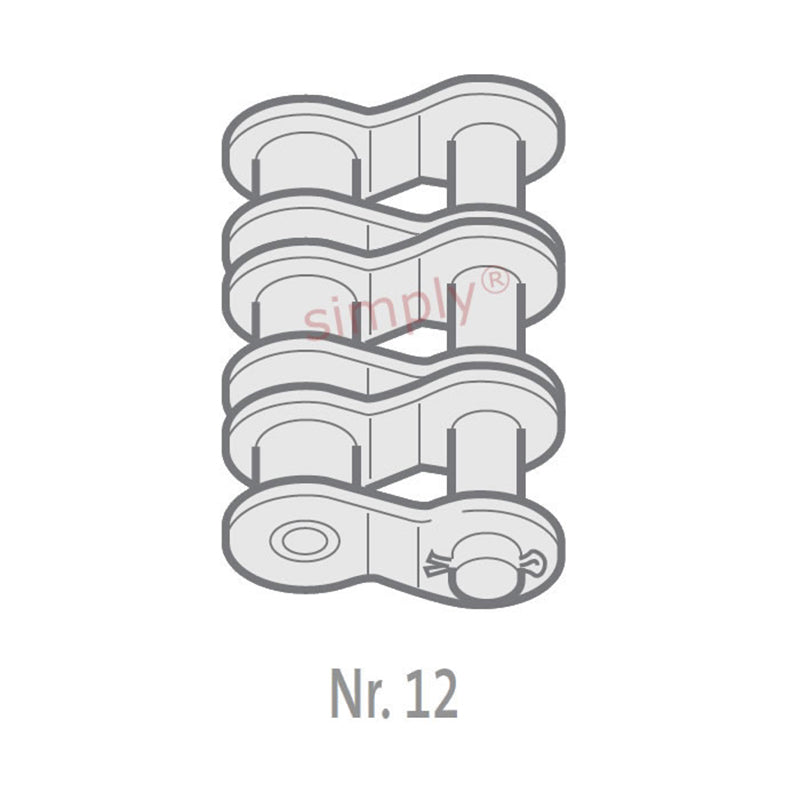

| Renold No. 12 ANSI Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (A) | 2 inch |
|---|---|
| Pitch (A) | 50.8mm |
| Inside Width min (B) | 31.55mm |
| Roller Diameter max (C) | 28.58mm |
| Plate Height max (D) | 48mm |
| Plate Width Inner max (E) | 6.4mm |
| Plate Width Outer max (F) | 6.4mm |
| Pin Diameter max (G) | 14.2mm |
| Pin Length max (H1) | 170.5mm |
| Connecting Link Extension max (J) | 16.8mm |
| ISO606 Tensile Strength min | 669000 N |
| Weight | 58.55kg/m |
