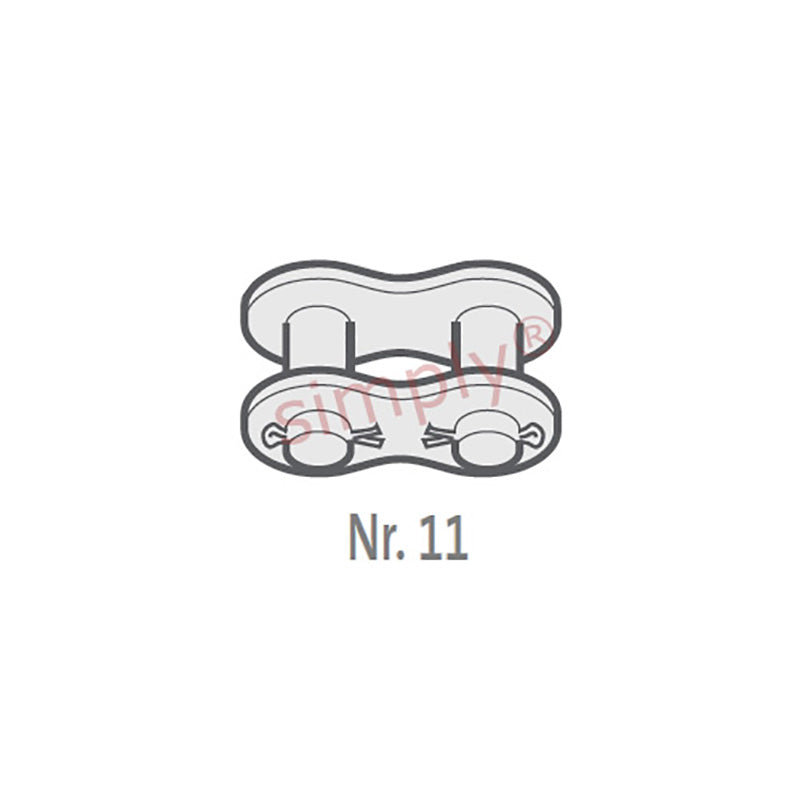

Renold SD 16B-1-NO11 BS Simplex Chain Cottered Connecting Link 1 inch Pitch
Renold SD 16B-1-NO11 BS Simplex Chain Cottered Connecting Link 1 inch Pitch
Regular price
€7,95
ex VAT
Regular price
Sale price
€7,95
ex VAT
In stock
Price Break
2+
€6,05
5+
€5,71
10+
€5,64
29+
€5,58
49+
€5,51
75+
€5,44
100+
€5,10
200+
€5,03
250+
€4,96
500+
€4,90
1000+
€4,76
Description
Description
| Renold No. 11 European (BS) Simplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.05mm |
| Plate Width Inner max (E) | 4mm |
| Plate Width Outer max (F) | 3.2mm |
| Pin Diameter max (G) | 8.28mm |
| Pin Length max (H1) | 36mm |
| Connecting Link Extension max (J) | 1.2mm |
| ISO606 Tensile Strength min | 60000 N |
| Weight | 0.008kg/m |
