SKU: 16B-1-SYN-NO11-RENOLD
Renold Synergy 16B-1-NO11 BS Simplex Chain Cottered Connecting Link 1 inch Pitch
Renold Synergy 16B-1-NO11 BS Simplex Chain Cottered Connecting Link 1 inch Pitch
Regular price
€31,34
ex VAT
Regular price
Sale price
€31,34
ex VAT
In stock
Price Break
10+
€27,89
19+
€26,33
29+
€26,01
39+
€25,70
49+
€25,39
74+
€25,07
99+
€23,51
199+
€23,19
249+
€22,88
499+
€22,56
999+
€21,94
Couldn't load pickup availability
Description
Description

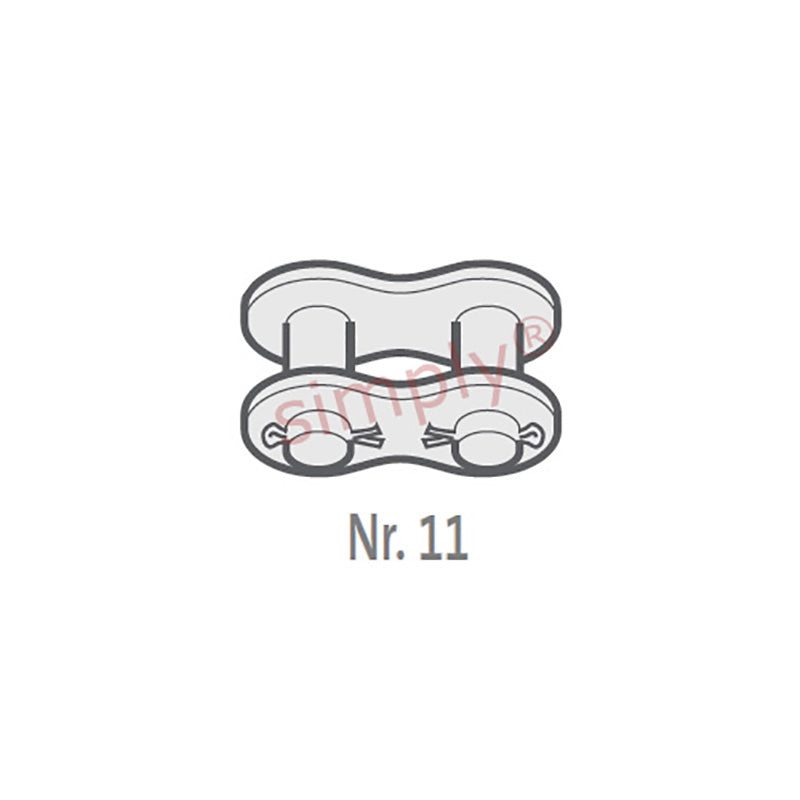

| Renold No. 11 European (BS) Simplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 25.4mm = 1 inch
Technical
Technical
| Pitch (A) | 1 inch |
|---|---|
| Pitch (A) | 25.4mm |
| Inside Width min (B) | 17.02mm |
| Roller Diameter max (C) | 15.88mm |
| Plate Height max (D) | 21.08mm |
| Plate Width Inner max (E) | 4.12mm |
| Plate Width Outer max (F) | 3.1mm |
| Pin Diameter max (G) | 8.28mm |
| Pin Length max (H1) | 34.9mm |
| Connecting Link Extension max (J) | 2.2mm |
| ISO606 Tensile Strength min | 60000 N |
| Weight | 0.06kg/m |
