SKU: 20217-MB-MB

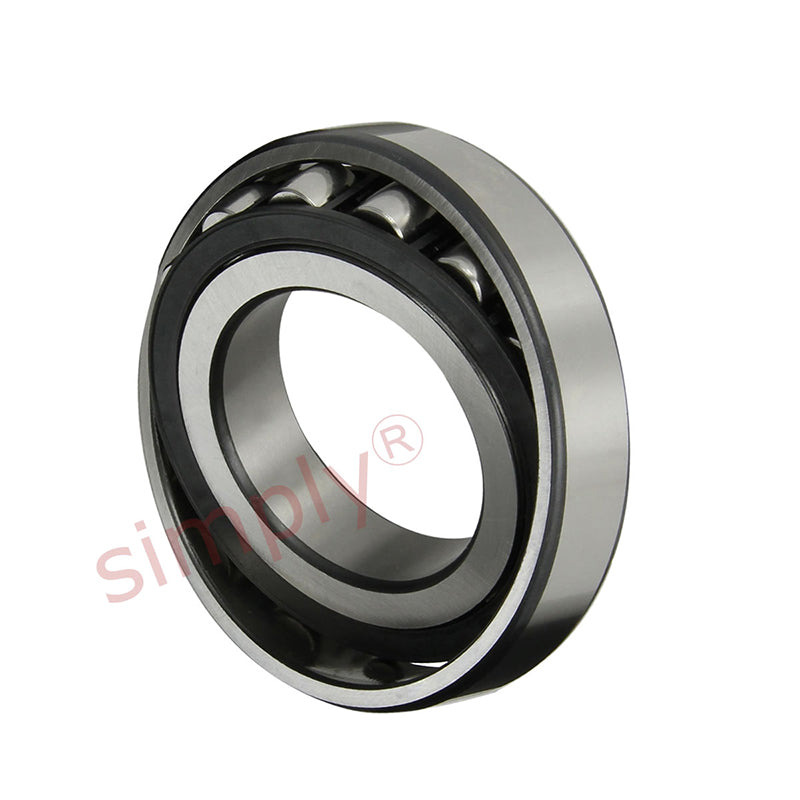

20217MB Barrel Roller Bearing with Cylindrical Bore 85x150x28mm - Allow 2-3 Days
20217MB Barrel Roller Bearing with Cylindrical Bore 85x150x28mm - Allow 2-3 Days
Regular price
€364,95
ex VAT
Regular price
Sale price
€364,95
ex VAT
In stock
Price Break
3+
€277,19
4+
€261,62
9+
€258,51
19+
€255,39
29+
€252,28
39+
€249,16
49+
€233,59
59+
€230,47
249+
€227,36
499+
€224,25
999+
€218,02
Description
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a cylindrical bore and a solid brass cage. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures from -30 deg C to +150 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 150mm
- Width:
- 28mm
- Clearance:
- * Standard
Technical
Technical
| d | 85mm |
|---|---|
| D | 150mm |
| B | 28mm |
| r min | 2mm |
| D1 | 133.9mm |
| da min | 96mm |
| Da max | 139mm |
| ra max | 2mm |
| Dynamic Load Cr | 156000 N |
| Static Load C0r | 200000 N |
| Fatigue limit load Cur | 20400 N |
| Limiting speed nG | 2400 rpm |
| Weight | 2.22 kg |
