SKU: 20310-TVP-MB

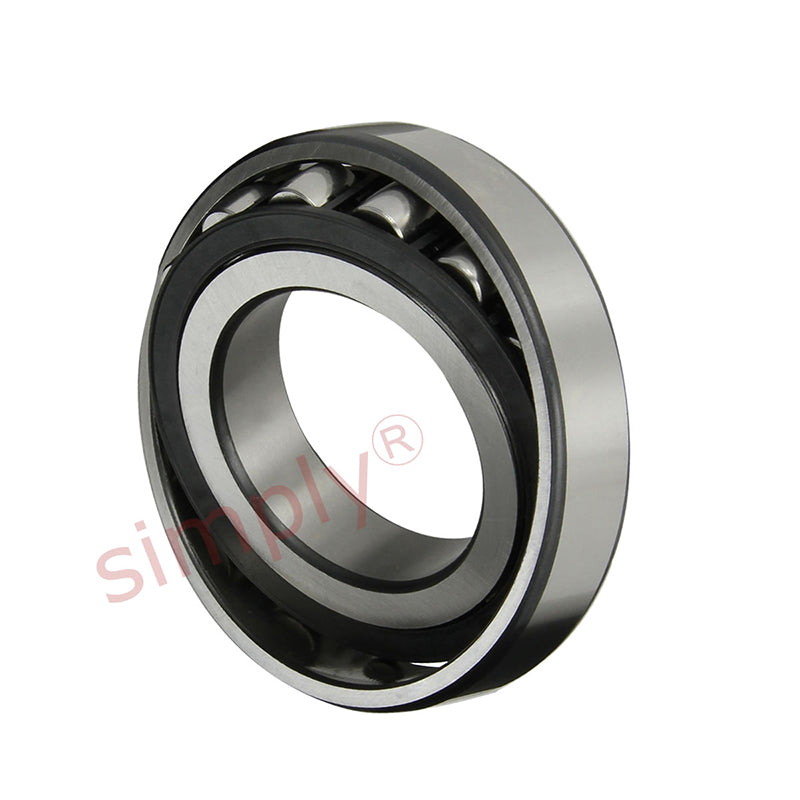

20310TVP Barrel Roller Bearing with Cylindrical Bore 50x110x27mm - Allow 2-3 Days
20310TVP Barrel Roller Bearing with Cylindrical Bore 50x110x27mm - Allow 2-3 Days
Regular price
€234,95
ex VAT
Regular price
Sale price
€234,95
ex VAT
In stock
Price Break
3+
€178,48
4+
€168,46
9+
€166,45
19+
€164,45
29+
€162,44
39+
€160,44
49+
€150,41
59+
€148,40
249+
€146,40
499+
€144,39
999+
€140,38
Description
Description
|
Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a cylindrical bore and a solid window cage made from glass fibre reinforced polyamide. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures up to +120 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 110mm
- Width:
- 27mm
- Clearance:
- * Standard
Technical
Technical
| d | 50mm |
|---|---|
| D | 110mm |
| B | 27mm |
| r min | 2mm |
| D1 | 94.4mm |
| da min | 61mm |
| Da max | 99mm |
| ra max | 2mm |
| Dynamic Load Cr | 108000 N |
| Static Load C0r | 118000 N |
| Fatigue limit load Cur | 10600 N |
| Limiting speed nG | 3400 rpm |
| Weight | 1.17 kg |
