SKU: 20312-TVP-MB
20312TVP Barrel Roller Bearing with Cylindrical Bore 60x130x31mm - Allow 2-3 Days
20312TVP Barrel Roller Bearing with Cylindrical Bore 60x130x31mm - Allow 2-3 Days
Regular price
€300,95
ex VAT
Regular price
Sale price
€300,95
ex VAT
In stock
Price Break
3+
€228,51
4+
€215,68
9+
€213,11
19+
€210,54
29+
€207,97
39+
€205,41
49+
€192,57
59+
€190,00
249+
€187,43
499+
€184,87
999+
€179,73
Description
Description
|

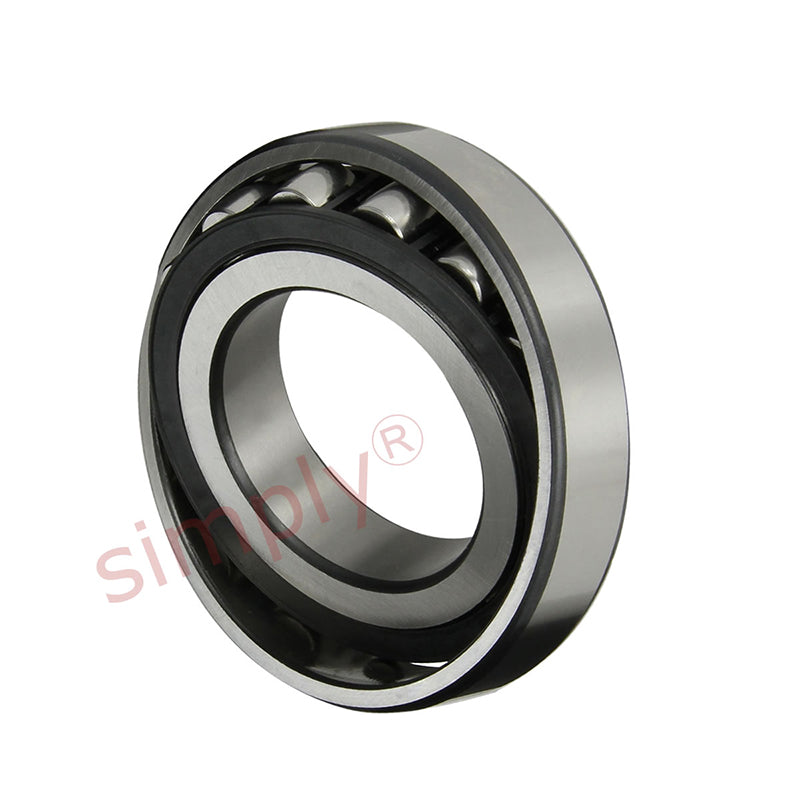

Barrel Roller Bearings: These bearings are single row, self aligning roller bearings. They consist of solid outer rings with a concave raceway, solid inner rings with two ribs and barrel rollers with cages. This bearing has a cylindrical bore and a solid window cage made from glass fibre reinforced polyamide. The bearings can be lubricated from the end faces using oil or grease. Suitable for operating temperatures up to +120 deg C. Benefits: Suitable where high radial shock type loads occur and where misalignments up to 4 degrees must be compensated. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 130mm
- Width:
- 31mm
- Clearance:
- * Standard
Technical
Technical
| d | 60mm |
|---|---|
| D | 130mm |
| B | 31mm |
| r min | 2.1mm |
| D1 | 111.2mm |
| da min | 72mm |
| Da max | 118mm |
| ra max | 2.1mm |
| Dynamic Load Cr | 146000 N |
| Static Load C0r | 170000 N |
| Fatigue limit load Cur | 15200 N |
| Limiting speed nG | 2800 rpm |
| Weight | 1.92 kg |
