SKU: 206KPP4-MB

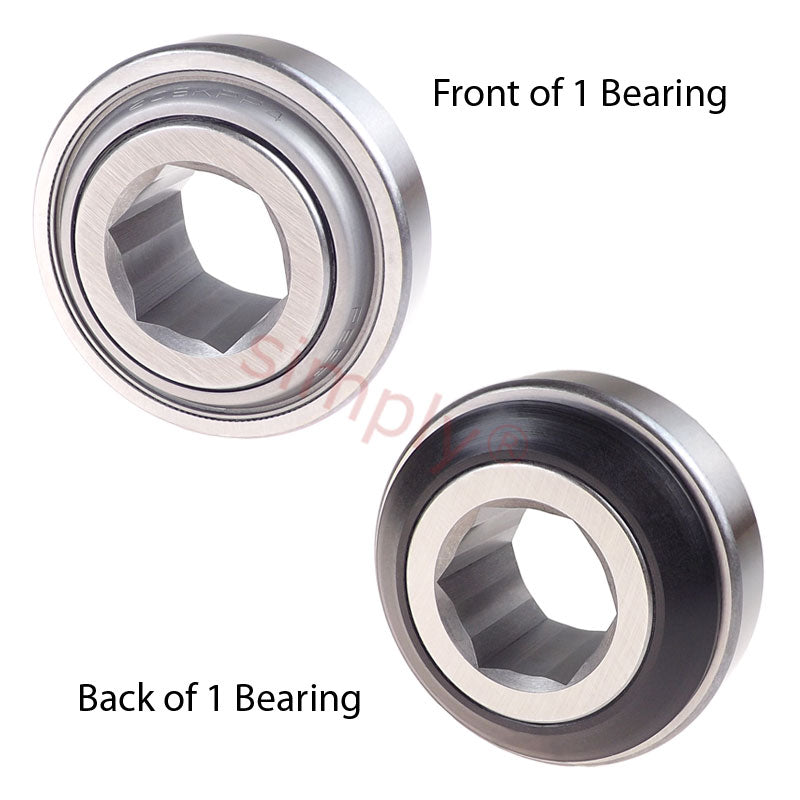

Major Brand 206KPP4 Seeder Hex Bore Nylon Slinger Included Bearing 1.001x2.4409x1.06 inch

Name: Major Brand 206KPP4 Seeder Hex Bore Nylon Slinger Included Bearing 1.001x2.4409x1.06 inch
Brand: PEER
SKU: 206KPP4-MB
Price: 26.95 EUR
Availability: InStock

€26,95 ex VAT

Sale Sold out

Low stock

Price Break

5+ €19,95

9+ €18,83

19+ €18,61

29+ €18,38

49+ €18,16

74+ €17,93

99+ €16,81

199+ €16,59

249+ €16,36

499+ €16,14

999+ €15,69

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Seal Type: P, TRL
Typical Application & Speed Limit: Augers with Direct Crop Contact - Basic BRG. Size < 205: 800 RPM , Tillage/Baler Idler Rolls - Basic BRG. Size > 205: 500 RPM
Typical Environment: Direct ground and crop contact, moisture exposure
Contamination Exclusion: Severe

Brand / Quality:: PEER - High Quality
Inside Diameter:: 25.42mm = 1.001 inch
Outside Diameter:: 61.99mm = 2.44 inch
Width:: 26.92mm = 1.06 inch

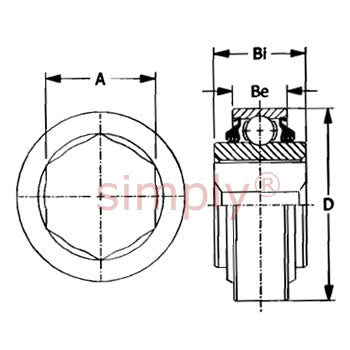

Technical

d	1.001 inch = 25.4254mm (Tolerance +.0000 to minus 0.005)
D	2.4409 inch = 61.99886mm (Tolerance +.0000 to minus 0.0005)
Bi	1.06 inch = 26.924mm
Be	0.6299 inch = 15.99946mm
Be & Bi	(Tolerance +.0000 to minus 0.0047)
Seal/Shield Type	P, TRL Seal
Load Ratings Dynamic	4370 lbf
Load Ratings Static	2320 lbf
