SKU: 209-NPP-B-INA

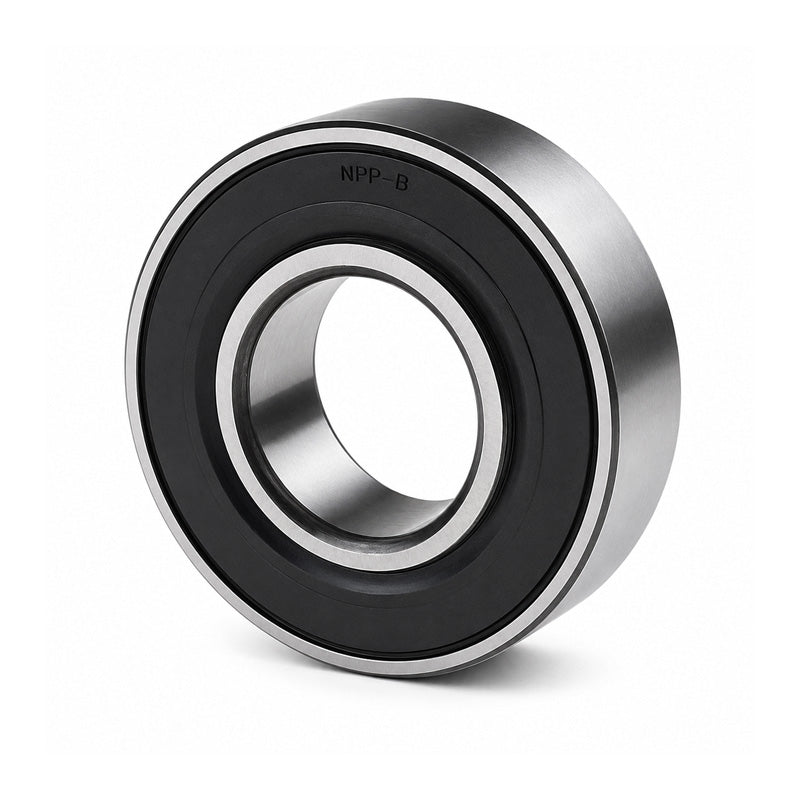

INA 209XLNPPB Metric Spherical Outer Deep Groove Ball Bearing with R Seals 45x85x19mm
INA 209XLNPPB Metric Spherical Outer Deep Groove Ball Bearing with R Seals 45x85x19mm
Regular price
€51,95
ex VAT
Regular price
Sale price
€51,95
ex VAT
Equivalent to: 209NPPU CS209 17262092RS
In stock
Price Break
3+
€38,95
5+
€36,76
10+
€36,32
15+
€35,88
20+
€35,45
30+
€35,01
40+
€32,82
50+
€32,38
60+
€31,94
75+
€31,51
100+
€30,63
Description
Description
|
INA 2..-NPP-B Series Inserts: Bearing insert with spherical outer race and R seals. Bearings with a fit on the shaft allow speeds equivalent to those of standard ball bearings, are suitable for bearing arrangements with an alternating direction of rotation and offer smooth running. Operating temperature range: -20 deg C to +120 deg C. Benefits: Compensation of misalignment. |
Equivalent: 209NPPU CS209 17262092RS
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 19mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 45mm |
|---|---|
| Dsp | 85mm |
| B | 19mm |
| d2 | 53.2mm |
| r min | 1.1mm |
| Limiting speed nG Fett | 4900 rpm |
| Dynamic load Cr | 32500 N |
| Static load C0r | 20400 N |
| Weight | 0.41 kg |
