SKU: 20B-2-NO11-MB
Branded 20B-2-NO11 BS Duplex Chain Cottered Connecting Link 1-1/4 inch Pitch
Branded 20B-2-NO11 BS Duplex Chain Cottered Connecting Link 1-1/4 inch Pitch
Regular price
€13,95
ex VAT
Regular price
Sale price
€13,95
ex VAT
Equivalent to: 20B-2-CL-COT 20B-2-CL
In stock
Price Break
2+
€10,27
5+
€9,69
10+
€9,58
29+
€9,46
49+
€9,35
75+
€9,23
100+
€8,65
200+
€8,54
250+
€8,42
500+
€8,31
1000+
€8,08
Description
Description

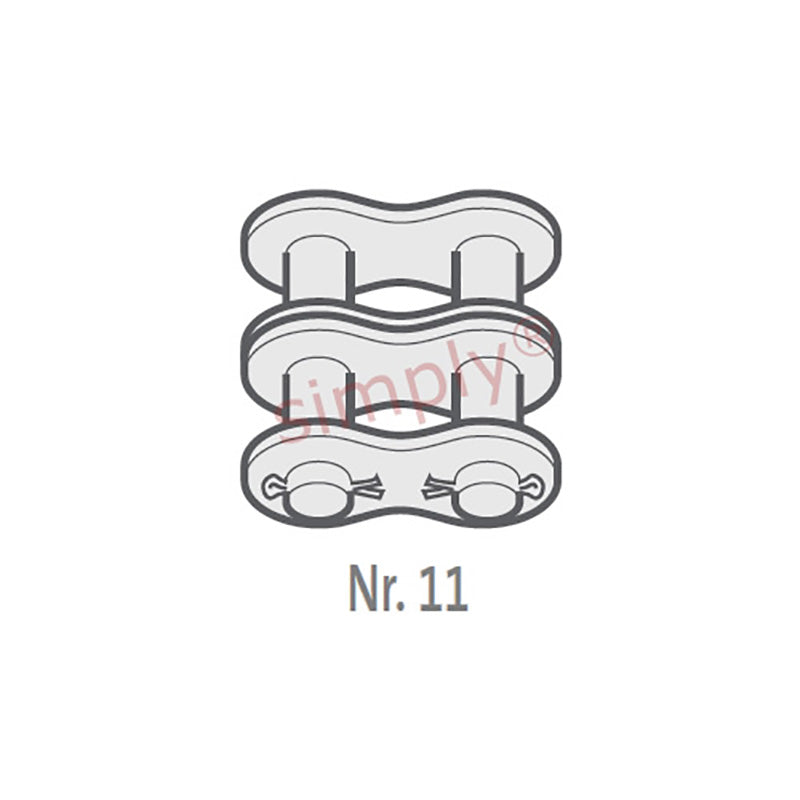

Dunlop COT / No. 11 European (BS) Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Equivalent: 20B-2-CL-COT 20B-2-CL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Pitch (A) | 1.25 inch |
|---|---|
| Pitch (A) | 31.75mm |
| Inside Width min (B) | 19.56mm |
| Roller Diameter max (C) | 19.05mm |
| Plate Height max (D) | 26.3mm |
| Plate Width Inner max (E) | 4.5mm |
| Plate Width Outer max (F) | 3.5mm |
| Pin Diameter max (G) | 10.19mm |
| Pin Length max (H2) | 77.2mm |
| Connecting Link Extension max (J) | 3.7mm |
| Transverse Pitch nom (K) | 36.45mm |
| ISO606 Tensile Strength min | 170000 N |
| Weight | 0.08kg/m |
