SKU: 20B-2-SD-NO11-RENOLD
Renold SD 20B-2-NO11 BS Duplex Chain Cottered Connecting Link 1-1/4 inch Pitch
Renold SD 20B-2-NO11 BS Duplex Chain Cottered Connecting Link 1-1/4 inch Pitch
Regular price
€16,95
ex VAT
Regular price
Sale price
€16,95
ex VAT
In stock
Price Break
2+
€12,79
5+
€12,07
10+
€11,93
29+
€11,79
49+
€11,64
75+
€11,50
100+
€10,78
200+
€10,64
250+
€10,49
500+
€10,35
1000+
€10,06
Description
Description

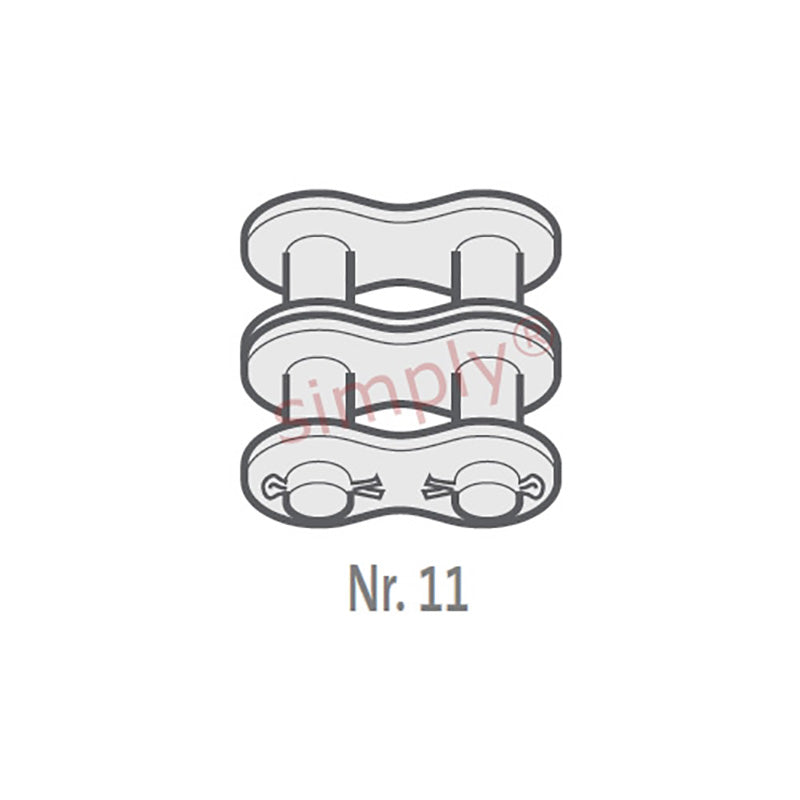

| Renold No. 11 European (BS) Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| Pitch (A) | 1.25 inch |
|---|---|
| Pitch (A) | 31.75mm |
| Inside Width min (B) | 19.56mm |
| Roller Diameter max (C) | 19.05mm |
| Plate Height max (D) | 26.3mm |
| Plate Width Inner max (E) | 4.5mm |
| Plate Width Outer max (F) | 3.5mm |
| Pin Diameter max (G) | 10.19mm |
| Pin Length max (H2) | 77.2mm |
| Connecting Link Extension max (J) | 3.7mm |
| Transverse Pitch nom (K) | 36.45mm |
| ISO606 Tensile Strength min | 170000 N |
| Weight | 0.22kg/m |
