SKU: 2310K-EU

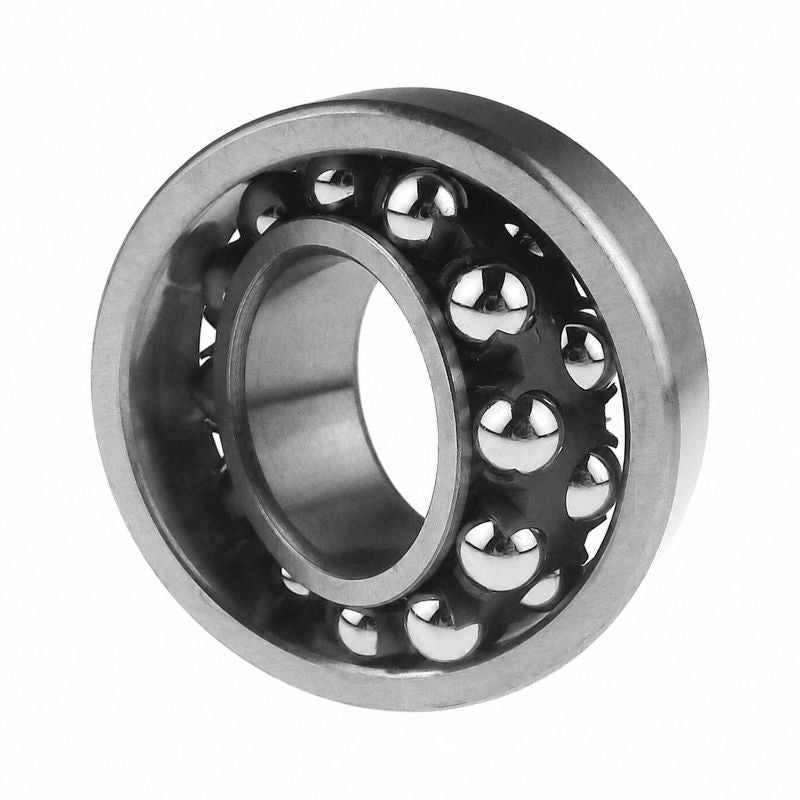

2310K Budget Open Self Aligning Ball Bearing with Taper Bore 50x110x40mm

2310K Budget Open Self Aligning Ball Bearing with Taper Bore 50x110x40mm
Regular price €67,95 ex VAT
Regular price Sale price €67,95 ex VAT
Sale Sold out

Equivalent to: 2310EK

In stock

Price Break
10+ €51,16
19+ €48,28
29+ €47,71
39+ €47,13
49+ €46,56
74+ €45,98
99+ €43,11
199+ €42,54
249+ €41,96
499+ €41,39
999+ €40,24
Quantity
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
d 50mm
D 110mm
B 40mm
D1 94.4mm
d1d2 65.8mm
r1r2 2mm
da min 61mm
Da max 99mm
ra max 2mm
--- Calculation Data
C 63.7kN
Co 2014
Pu 1.04kN
ref 14000rpm
limit 9500rpm
e 0.43
Y1 1.5
Y2 2.3
Y0 1.6
--- Weights
kg 1.65
--- Matching Adaptor Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=H2310+sleeve>H2310</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HS2310+sleeve>HS2310</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HA2310+sleeve>HA2310</a>
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=HE2310+sleeve>HE2310</a>
--- Matching Withdrawal Sleeves
Sleeve No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=AHX2310+sleeve>AHX2310</a>
