SKU: 24064CC/W33-SKF

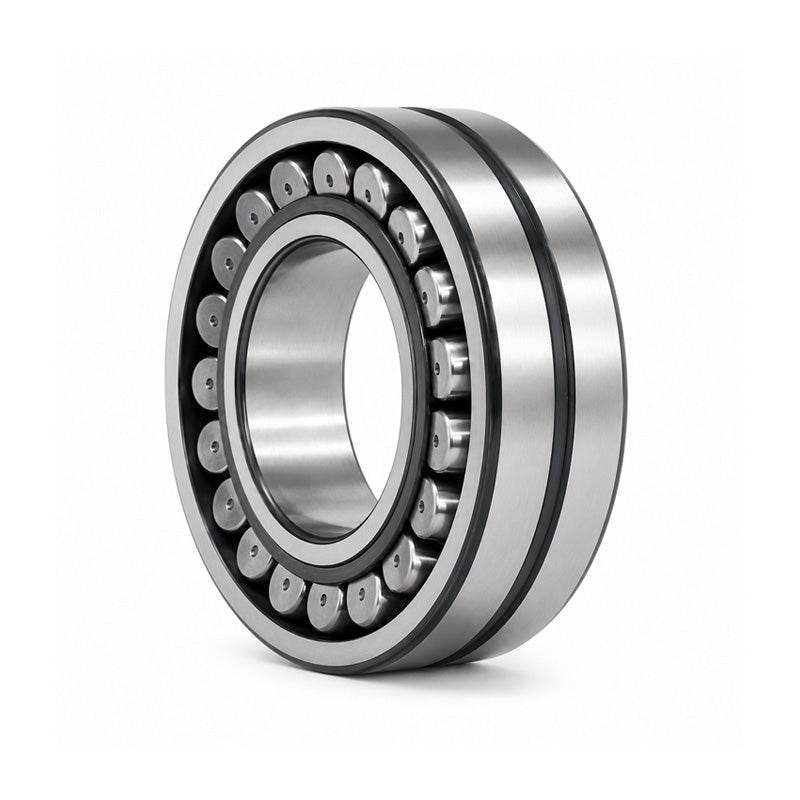

SKF 24064CCW33 Spherical Roller Bearing with Cylindrical Bore with Steel Cage 320x480x160mm
SKF 24064CCW33 Spherical Roller Bearing with Cylindrical Bore with Steel Cage 320x480x160mm
Regular price
€8.253,03
ex VAT
Regular price
Sale price
€8.253,03
ex VAT
In stock
Price Break
2+
€7.840,38
5+
€7.427,73
10+
€7.015,08
15+
€6.602,42
20+
€6.437,36
30+
€6.272,30
50+
€5.447,00
Couldn't load pickup availability
Description
Description
|
SKF Spherical Roller Bearings: These bearings have two rows of barrel shaped (spherical) rollers which run on a common spherical outer and inner raceway, they are inclined at an angle to the bearings axis. Their design offers many features such as self alignment, insensitivity to misalignment, tolerance to heavy radial and axial loads etc. They are manufactured with in both parallel and tapered bore variants. Benefits: High radial and axial loads, misalignment, taper and parallel bore options |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 320mm
- Outside Diameter:
- 480mm
- Width:
- 160mm
- Clearance:
- * Standard
Technical
Technical
| --- | Dimensions |
|---|---|
| d | 320mm |
| D | 480mm |
| B | 160mm |
| D1 | 423mm |
| d2 | 354mm |
| r1r2 min | 4mm |
| b | 13.9mm |
| K | 7.5mm |
| da min | 335mm |
| Da max | 465mm |
| ra max | 3mm |
| --- | Speeds, Loads and Weights |
| Dynamic load C | 2850 kN |
| Static load Co | 5100 kN |
| Fatigue load limit Pu | 400 kN |
| Reference speed | 800 rpm |
| Limiting speed | 1200 rpm |
| Weight | 100 kg |
| --- | Factors |
| Calculation factor e | 0.31 |
| Calculation factor Y1 | 2.2 |
| Calculation factor Y2 | 3.3 |
| Calculation factor Y0 | 2.2 |
