SKU: 28B-2-BB-NO11-RENOLD
Renold Blue Box 28B-2-NO11 BS Duplex Chain Cottered Connecting Link 1-3/4 inch Pitch
Renold Blue Box 28B-2-NO11 BS Duplex Chain Cottered Connecting Link 1-3/4 inch Pitch
Regular price
€115,95
ex VAT
Regular price
Sale price
€115,95
ex VAT
In stock
Price Break
2+
€87,90
5+
€82,96
10+
€81,98
29+
€80,99
49+
€80,00
75+
€79,01
100+
€74,08
200+
€73,09
250+
€72,10
500+
€71,11
1000+
€69,14
Description
Description

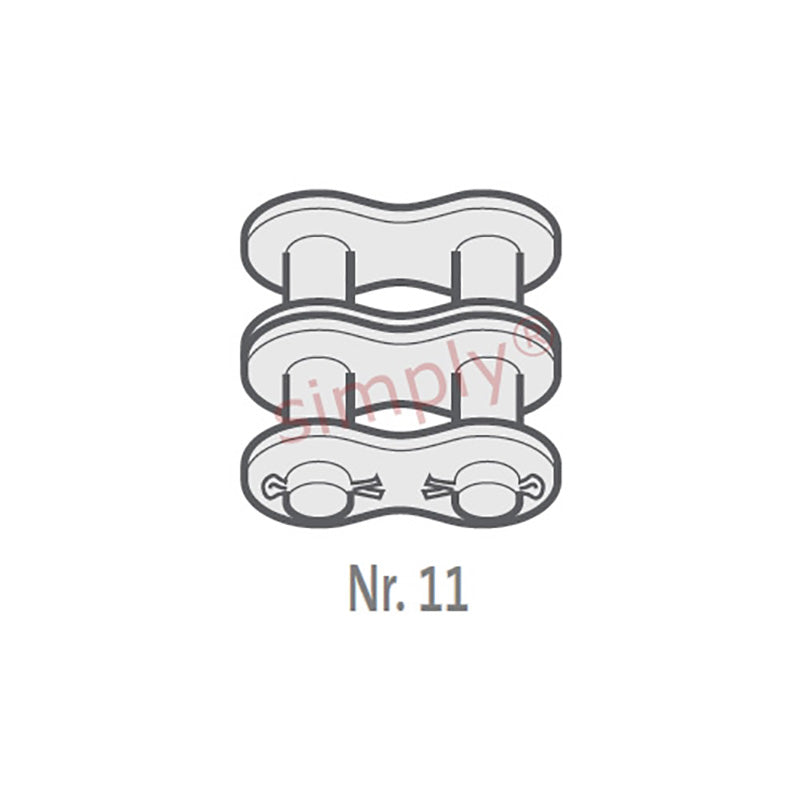

| Renold No. 11 European (BS) Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 44.45mm = 1.75 (1-3/4) inch
Technical
Technical
| Pitch (A) | 1.75 inch |
|---|---|
| Pitch (A) | 44.45mm |
| Inside Width min (B) | 30.99mm |
| Roller Diameter max (C) | 27.94mm |
| Plate Height max (D) | 37.08mm |
| Plate Width Inner max (E) | 7.62mm |
| Plate Width Outer max (F) | 6.35mm |
| Pin Diameter max (G) | 15.9mm |
| Pin Length max (H1) | 123.7mm |
| Connecting Link Extension max (J) | 6.8mm |
| ISO606 Tensile Strength min | 360000 N |
| Weight | 0.27kg/m |
