SKU: 28B-3-NO11-DUN
Branded 28B-3-NO11 BS Triplex Chain Cottered Connecting Link 1-3/4 inch Pitch
Branded 28B-3-NO11 BS Triplex Chain Cottered Connecting Link 1-3/4 inch Pitch
Regular price
€30,95
ex VAT
Regular price
Sale price
€30,95
ex VAT
Equivalent to: 28B-3-CL-COT 28B-3-CL
In stock
Price Break
2+
€22,90
5+
€21,61
10+
€21,36
29+
€21,10
49+
€20,84
75+
€20,58
100+
€19,30
200+
€19,04
250+
€18,78
500+
€18,53
1000+
€18,01
Description
Description

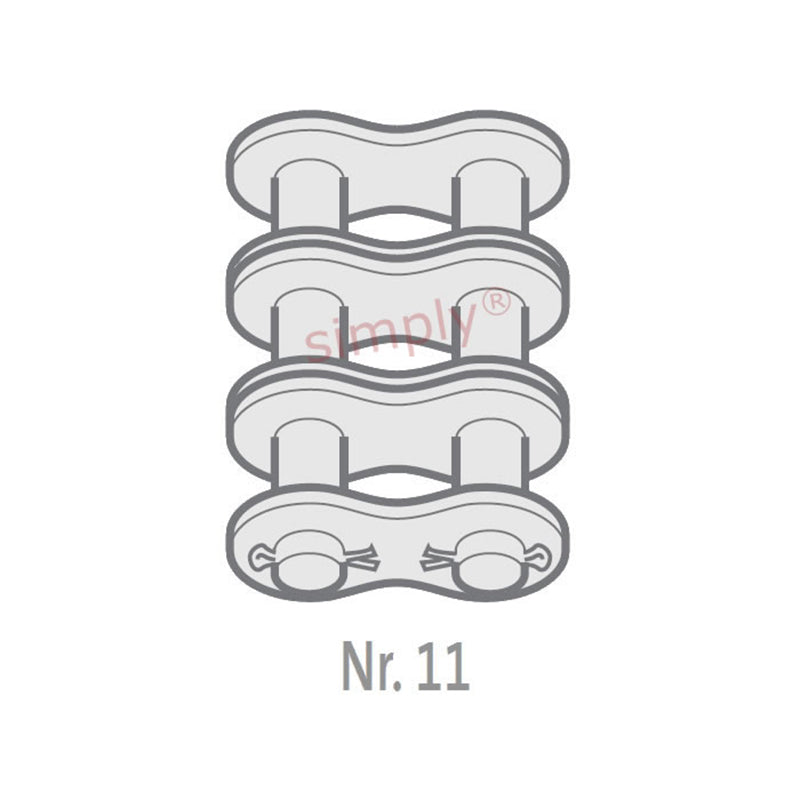

Dunlop COT / No. 11 European (BS) Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Equivalent: 28B-3-CL-COT 28B-3-CL
- Brand / Quality:
- Branded - Good Quality
- Pitch:
- 44.45mm = 1.75 (1-3/4) inch
Technical
Technical
| Pitch (A) | 1.75 inch |
|---|---|
| Pitch (A) | 44.45mm |
| Inside Width min (B) | 30.99mm |
| Roller Diameter max (C) | 27.94mm |
| Plate Height max (D) | 36.9mm |
| Plate Width Inner max (E) | 7.4mm |
| Plate Width Outer max (F) | 6.4mm |
| Pin Diameter max (G) | 15.9mm |
| Pin Length max (H3) | 175.6mm |
| Connecting Link Extension max (J) | 14.1mm |
| ISO606 Tensile Strength min | 580000 N |
| Weight | 0.4kg/m |
