SKU: 28B-3-NO12-MB
Branded 28B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 1-3/4 inch Pitch
Branded 28B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 1-3/4 inch Pitch
Regular price
€77,95
ex VAT
Regular price
Sale price
€77,95
ex VAT
Equivalent to: 28B-3-OL
In stock
Price Break
2+
€58,88
5+
€55,58
10+
€54,91
29+
€54,25
49+
€53,59
75+
€52,93
100+
€49,62
200+
€48,96
250+
€48,30
500+
€47,64
1000+
€46,31
Description
Description

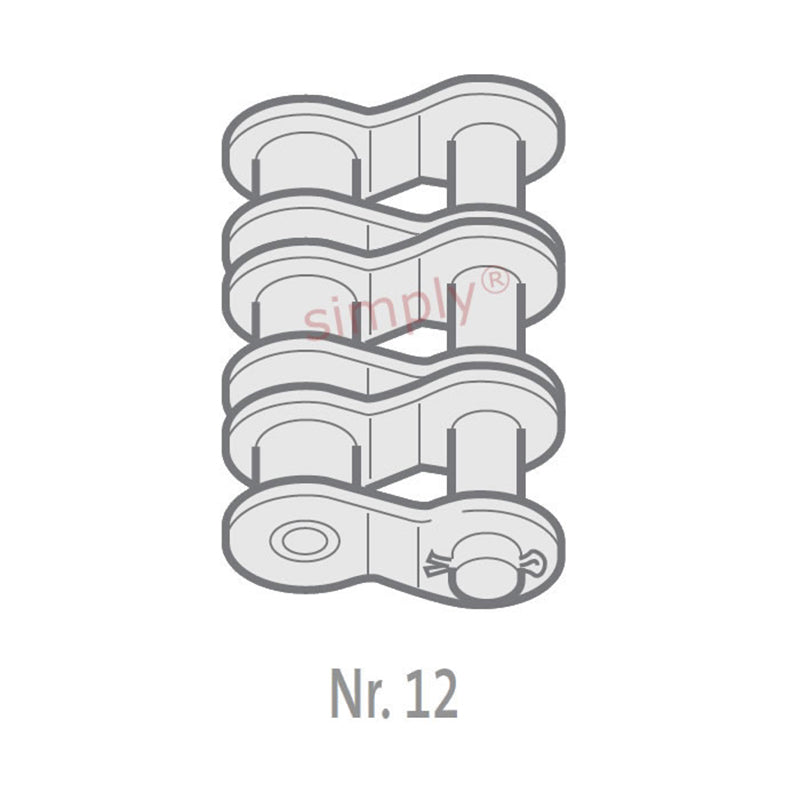

Branded OL / No. 12 European (BS) Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Equivalent: 28B-3-OL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 44.45mm = 1.75 (1-3/4) inch
Technical
Technical
| Pitch (A) | 1.75 inch |
|---|---|
| Pitch (A) | 44.45mm |
| Inside Width min (B) | 30.99mm |
| Roller Diameter max (C) | 27.94mm |
| Plate Height max (D) | 36.9mm |
| Plate Width Inner max (E) | 7.4mm |
| Plate Width Outer max (F) | 6.4mm |
| Pin Diameter max (G) | 15.9mm |
| Pin Length max (H3) | 175.6mm |
| Connecting Link Extension max (J) | 14.1mm |
| ISO606 Tensile Strength min | 580000 N |
| Weight | 0.4kg/m |
