SKU: 28B-3-SD-NO11-RENOLD
Renold SD 28B-3-NO11 BS Triplex Chain Cottered Connecting Link 1-3/4 inch Pitch
Renold SD 28B-3-NO11 BS Triplex Chain Cottered Connecting Link 1-3/4 inch Pitch
Regular price
€70,27
ex VAT
Regular price
Sale price
€70,27
ex VAT
In stock
Price Break
10+
€62,54
19+
€59,03
29+
€58,32
39+
€57,62
49+
€56,92
74+
€56,22
99+
€52,70
199+
€52,00
249+
€51,30
499+
€50,59
999+
€49,19
Couldn't load pickup availability
Description
Description

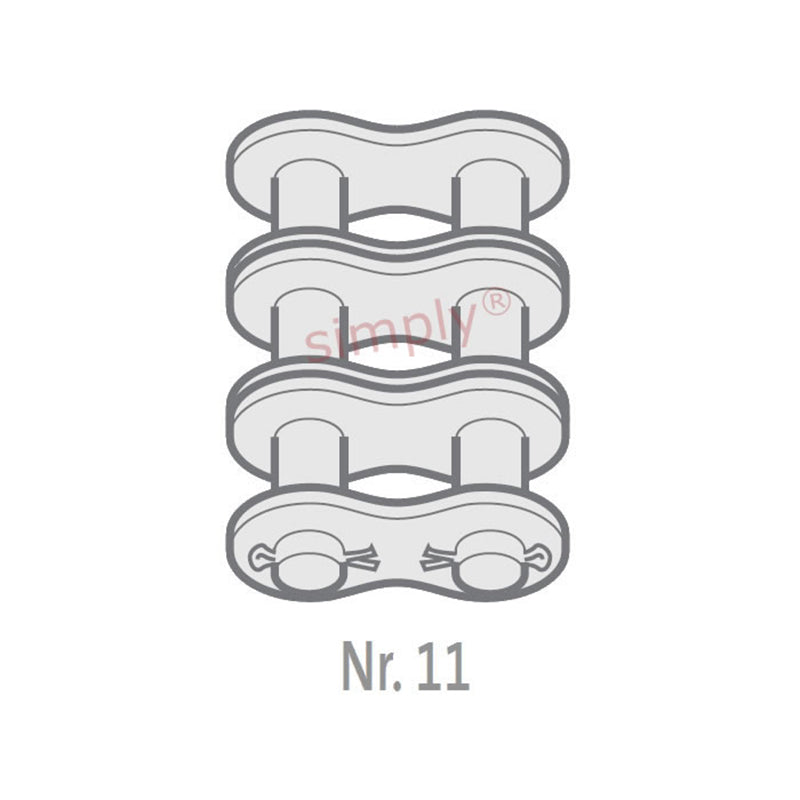

| Renold No. 11 European (BS) Triplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 44.45mm = 1.75 (1-3/4) inch
Technical
Technical
| Pitch (A) | 1.75 inch |
|---|---|
| Pitch (A) | 44.45mm |
| Inside Width min (B) | 30.99mm |
| Roller Diameter max (C) | 27.94mm |
| Plate Height max (D) | 36.9mm |
| Plate Width Inner max (E) | 7.4mm |
| Plate Width Outer max (F) | 6.4mm |
| Pin Diameter max (G) | 15.9mm |
| Pin Length max (H1) | 175.6mm |
| Connecting Link Extension max (J) | 14.1mm |
| ISO606 Tensile Strength min | 580000 N |
| Weight | 0.4kg/m |
