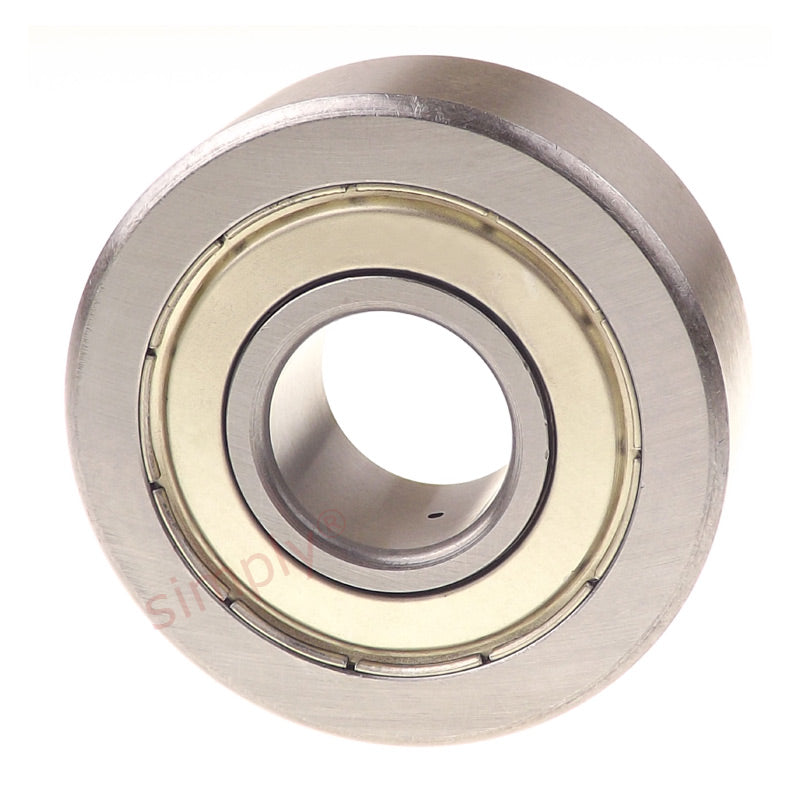

• SKF 305702C2Z Double Row Cam Roller Bearing with Parallel Running Surface 15x40x15.9mm
1 1

SKU: 305702C-2Z-SKF

SKF 305702C2Z Double Row Cam Roller Bearing with Parallel Running Surface 15x40x15.9mm

SKF 305702C2Z Double Row Cam Roller Bearing with Parallel Running Surface 15x40x15.9mm
€57,95 ex VAT
€57,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €43,42
19+ €40,98
29+ €40,49
39+ €40,00
49+ €39,51
74+ €39,03
99+ €36,59
199+ €36,10
249+ €35,61
499+ €35,12
999+ €34,15
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Double Row Cam Rollers: Are special variants of deep groove ball bearings which have thicker outer races to allow for running in tracks as rollers where misalignment and shock loads may be present. They have the same characteristics as normal deep groove ball bearings, generally have seals although some unsealed versions are available and can also be used in place of standard bearings. They are available with parallel outside diameter or crowned (spherical) for applications where greater misalignment needs to be catered for.
Benefits: Tolerate high loads, shock loads, misalignment when running in tracks
Brand / Quality:
SKF - High Quality
Inside Diameter:
15mm
Outside Diameter:
40mm
Width:
15.9mm
Seals / Shields:
Metal Shielded
Technical
d 15mm
D 40mm
B 15.9mm
d1 22.1mm
D1 30.7mm
r1r2 min 0.6mm
a 18mm
Limiting speed 8500 rpm
Mass 0.1 kg
Dynamic load C 10.6 kN
Static load Co 5.85 kN
Fatigue load limit Pu 0.25 kN
Max radial load 5.85 kN
Max static load 8.5 kN
